Stainless Steel Short Shoulder Nut
Specifications
- Brand
- wanlong
- Origin
- China
- Price Term
- FOB
Quick answer
Stainless Steel Short Shoulder Nut is a Fasteners product. Key specs — Brand: wanlong; Origin: China; Price Term: FOB.
Product Description

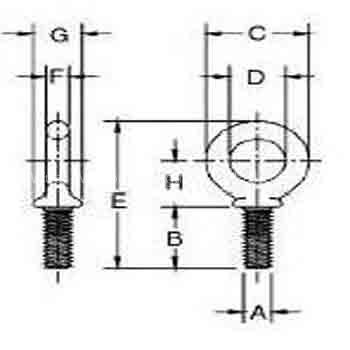

| ART. | Dimensions (in) | W.L.L | ||||||||
| NO. | SIZE | A | B | C | D | E | F | G | H | Lbs |
| XY04-0601 | 1/4 x 1 | 1/4"-20 | 1.02 | 1.13 | 0.75 | 2.29 | 0.19 | 0.53 | 0.7 | 650 |
| XY04-0602 | 5/16 x 1-1/8 | 5/16"-18 | 1.15 | 1.38 | 0.88 | 2.74 | 0.25 | 0.59 | 0.9 | 1200 |
| XY04-0603 | 3/8 x 1-1/4 | 3/8"-16 | 1.27 | 1.62 | 1 | 3.07 | 0.31 | 0.69 | 1 | 1550 |
| XY04-0604 | 1/2 x 1-1/2 | 1/2"-13 | 1.53 | 1.95 | 1.19 | 3.7 | 0.38 | 0.91 | 1.2 | 2600 |
| XY04-0605 | 5/8 x 1-3/4 | 5/8"-11 | 1.79 | 2.38 | 1.38 | 4.45 | 0.5 | 1.13 | 1.47 | 5200 |
| XY04-0606 | 3/4 x 2 | 3/4"-10 | 2.05 | 2.76 | 1.5 | 5.07 | 0.63 | 1.38 | 1.64 | 7200 |
| XY04-0607 | 7/8 x 2-1/4 | 7/8"-9 | 2.31 | 3.25 | 1.75 | 5.87 | 0.75 | 1.56 | 1.94 | 10600 |
| XY04-0608 | 1 x 2-1/2 | 1"-8 | 2.57 | 3.76 | 2 | 6.66 | 0.88 | 1.81 | 2.21 | 13300 |
| XY04-0609 | 1-1/4 x 3 | 1-1/4"-7 | 3.09 | 4.5 | 2.5 | 7.95 | 1 | 2.28 | 2.61 | 21000 |
| XY04-0610 | 1-1/2 x 3-1/2 | 1-1/2"-6 | 3.6 | 5.5 | 3 | 9.49 | 1.25 | 2.75 | 3.14 | 24000 |
Features Specifications of Shoulder Nut,G-277
Material of Shoulder Nut:stainless steel 304, 316
Size of Shoulder Nut1/4*1" to 1*21/2"
Applications of Shoulder Nut: eye bolt,eye screw,fastener,rigging hardware
Our company is specialized in producing series of stainless steel rigging hardware mainly used in the ships and vessels ,such as turnbuckles, shackles, wire rope clips, swivels, U bolts, S hooks, spring clips, spring hooks, pad eyes, rings eye bolts, you are interested in the items, please feel free to tell me.
