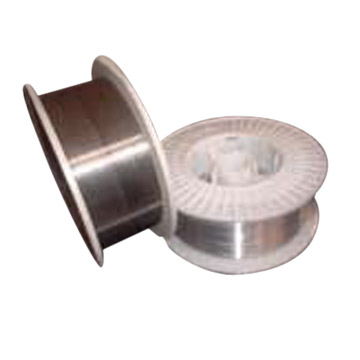

Stainless Steel MIG and TIG Wires

Product Name: Stainless Steel MIG and TIG Wires Place of Origin: ChinaER308 1) Typical wire chemistry: a) C: 0.04 b) Si: 0.46 c) Mn: 1.65 d) Ni: 9.85 e) Cr: 20.45 2) Typical mechanical properties (as welded): a) Tensile strength: 86,500PSI b) Elongation in 2: 39% ER308L 1) Typical wire chemistry: a) C: 0.019 b) Si: 0.46 c) Mn: 1.72 d) Ni: 10.10 e) Cr: 20.80 2) Typical mechanical properties (as welded): a) Tensile strength: 83,000PSI b) Elongation in 2: 40% ER308LSI 1) Typical wire chemistry: a) C: 0.016 b) Si: 0.85 c) Mn: 1.65 d) Ni: 10.00 e) Cr: 20.65 2) Typical mechanical properties (as welded): a) Tensile strength: 83,500PSI b) Elongation in 2: 39% ER309 1) Typical wire chemistry: a) C: 0.05 b) Si: 0.52 c) Mn: 1.95 d) Ni: 13.10 e) Cr: 23.75 2) Typical mechanical properties (as welded): a) Tensile strength: 86,500PSI b) Elongation in 2: 34% ER309L 1) Typical wire chemistry: a) C: 0.021 b) Si: 0.51 c) Mn: 1.75 d) Ni: 12.70 e) Cr: 23.40 2) Typical mechanical properties (as welded): a) Tensile strength: 84,000PSI b) Elongation in 2: 36% ER309LS 1) Typical wire chemistry: a) C: 0.019 b) Si: 0.84 c) Mn: 1.85 d) Ni: 12.95 e) Cr: 23.50 2) Typical mechanical properties (as welded): a) Tensile strength: 84,500PSI b) Elongation in 2: 35% ER312 1) Typical wire chemistry: a) C: 0.012 b) Si: 0.44 c) Mn: 1.64 d) Ni: 8.90 e) Cr: 29.60 2) Typical mechanical properties (as welded): a) Tensile strength: 109,500PSI b) Elongation in 2: 25%
