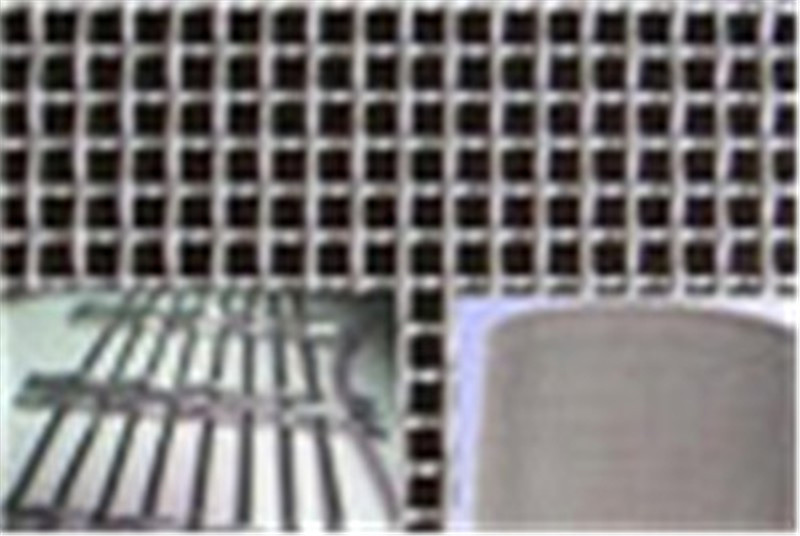

Square wire mesh

Square wire mesh Square wire mesh can be divided three kinds according to material Aluminum window sreen netting Brass/copper wire netting Enamelled Iron Wire Netting

Galvanized Square Wire Mesh is mostly used as window screen,industrial seieves in sugar, chemical,stone crusher industries.Also,it can be used for sieving grain. Workmanship: Hot dipped galvanized before or after weaving; electric galvanized before or after weaving.

Specification of galvanized square wire mesh mesh Wire diameter (mm) Opening (mm) mesh Wire diameter (mm) opening 3*3 1.60 6.87 20*20 0.27 1.00 4*4 1.20 5.15 22*22 0.25 0.90 5*5 0.95 4.13 24*24 0.23 0.83 6*6 0.80 3.43 26*26 0.20 0.78 8*8 0.60 2.57 28*28 0.18 0.73 10*10 0.50 2.04 30*30 0.15 0.70 12*12 0.50 1.61 35*35 0.14 0.59 14*14 0.40 1.41 40*40 0.14 0.50 16*16 0.35 1.24 50*50 0.12 0.39 18*18 0.30 1.11 60*60 0.12 0.30 Packing: each roll wrapped with water proof paper,then covered with hessian cloth.

Remark:sizes other ther those above mentioned can be made to order after consideration.
