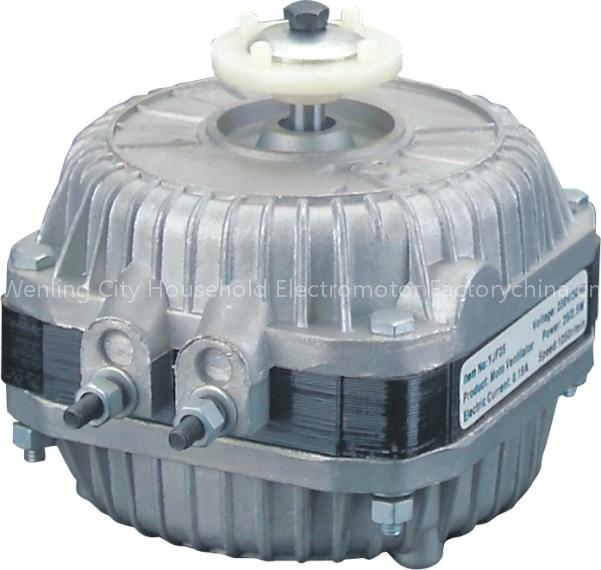

Square Shaded Pole Fan Motor

HL-YJF series motors are shaded pole motor with single phase, 4 shaded pole and running at rated voltage of 110-240v, 50/60Hz, the output powers is from 5W to 34W, Class B, IP42 standard, IP44 is optional, thermal protector is optional, factory standard is sleeve bearing, ball bearing is optional.

Moel	Voltage V	Frequency Hz	Input W	Output W	Current A	Speed r/min	Fan Blade mm	Bracket mm	A mm	B mm	C mm	D mm
HL-YJF5	220-240	50/60	33	5	0.25	1300	200	H72	13	13	44	79
HL-YJF6	115	60	33	6	0.55	1550			19	13	44	85
HL-YJF7	220-240	50/60	38	7	0.30	1300	230	H84	19	13	44	85
HL-YJF10	220-240	50/60	40	10	0.35	1300	230	H84	20	13	44	86
	115	60	55	10	0.80	1550
HL-YJF16	220-240	50/60	70	16	0.50	1300	250	H84	25	14	45	92
HL-YJF18	220-240	50/60	73	18	0.50	1300	250	H84	30	17	48	101
	115	60	75	18	1.00	1550
HL-YJF25	220-240	50/60	95	25	0.70	1300	300	H109-2	40	18	49	112
	115	60	100	25	1.40	1550
HL-YJF34	220-240	50/60	120	34	0.85	1300	300	H109-3	45	22	53	121
	115	60	110	34	1.50	1550
