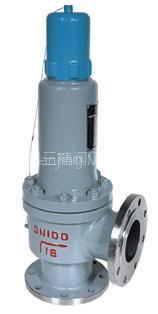

Spring Low lift safety valve-A41H

Listing ID#10136202

ModelA41H

CategorySeals

Seals

Spring Low lift safety valve-A41H

Specifications

Origin: China (Mainland)

Request Quote

Quick answer

Spring Low lift safety valve-A41H is a Seals product. Key specs — Origin: China (Mainland).

Product Description

Spring Low lift safety valve

Safety valve:

Mode		do	d	M	D	K	Z-?d	b	d1	M1	D1	K1	Z1-?d1	b1	L	L1	≈H
Mode	Nominal bore	do	d	M	D	K	Z-?d	b	d1	M1	D1	K1	Z1-?d1	b1	L	L1	≈H
A41Y-160	15	8	20	M24×2	95	60	318	20	/	M33×2	36	/	/	/	50	80	85
(single flange)	20	10	25	M27×2	95	60	318	20	/	M33×2	48	/	/	/	50	80	85
	25	12	28	M33×2	105	68	318	20	/	M33×2	48	/	/	/	50	80	85
A41Y-160	10	8	18	M24×2	95	60	318	20	29	M42×2	115	80	418	22	95	100	261
	15	8	20	M24×2	95	60	318	20	29	M42×2	115	80	418	22	95	100	261
	20	10	27	M33×2	105	68	318	20	29	M42×2	115	80	418	22	95	100	261
	25	12	28	M33×2	105	68	318	20	50	M64×3	165	115	626	32	130	135	285
	32	12.14.16	37	M42×2	115	80	418	22	50	M64×3	165	115	626	32	130	135	285
	40	20	47	M52×2	165	115	626	28	65	M80×3	200	145	629	40	165	165	350
	50	25	58	M64×3	165	115	626	32	80	M100×3	225	170	6-33	80	165	165	380
A41Y-320	10	8	18	M24×2	95	60	318	20	29	M42×2	115	80	418	22	95	100	261
	15	8	27	M33×2	105	68	318	20	29	M42×2	115	80	418	22	95	100	261
	20	10	30	M36×2	110	75	318	20	29	M42×2	115	80	418	22	95	100	261
	25	12	35	M42×2	115	80	418	22	50	M64×3	165	115	626	32	130	135	285
	32	12.14.16	41	M48×2	135	95	422	25	50	M64×3	165	115	626	32	130	135	285
	40	20	58	M64×2	165	115	626	32	65	M80×3	200	145	629	40	165	115	350
	50	25	70	M80×2	200	145	629	40	80	M100×3	225	170	6-33	50	165	165	380
