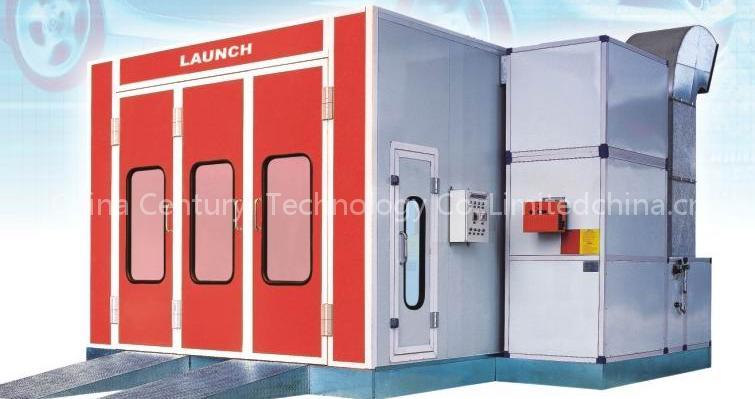

Spray Booth CCH-101

1.Overall dimension(m):7.0*5.3*3.5 2.inner dimension(m):6.9*3.9*2.7 3.Width of door for entrance of vehicle(m):3.0 4.Height of door for entrance of vehicle(m):2.7 5.steel plate thickness(mm):0.326 6.filtrated area(m2):20 flow volume(m3/h):21000 velocity within booth(m/s):0.25～0.35 9.Ventilation times(times/hr):265 10.Working temperature(℃):60～80 consumption(kg/set):6～8 12.Power(kw):9.5 blower:One unit 7.5KW European style professional blowers 14.Nether lighting:no 15.environmental protection device:no
