Listing ID#10210223
ModelDN-40
CategoryBusiness Services
Quick answer

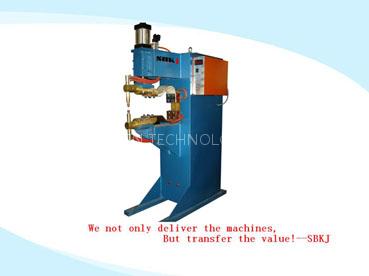

Spot Welder is a Business Services product. Key specs — Origin: jiangyin; Price Term: FOB.
Product Description
Main Technical Date:
| Type | DN-40 | DN-25 | DN-16E | DN-6 |
| Input voltage (V) | 380±10 | 380±10 | 380±10 | 380±10 |
| Input capacity(kVA) | 40 | 25 | 16 | 6 |
| Rated load cycle (%) | 12 | 14 | 20 | 20 |
| Welding thickness (mm) | 1.5+1.5 | |||
| Max.pressure of electrode (N) | 393 | 2510 | 1700 | |
| Electrode journey (mm) | 60 | 60 | 20 | 30 |
| Weight(kg) | 225 | 195 | 115 | 40 |
| Dimension(mm) | 1200×750×1000 |
