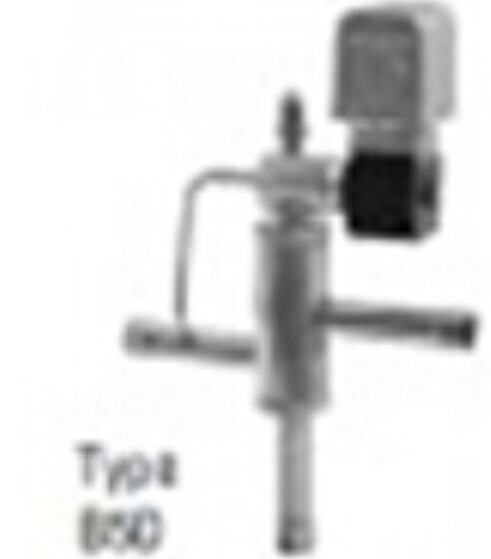

Sporlan solenoid valve 3-Way Valves

TYPE 12D13B-SC Sporlan solenoid valve Rapid Cycle Solenoid Valves Sporlan solenoid valve V-Series Ruby Seat Solenoid Valves Sporlan solenoid valve XSP SERIES SOLENOID VALVES FOR SECONDARY COOLANT CO2 XSP2S130 *Minimum order quantity may be required.

Sporlan Solenoid Valves for Secondary Coolant Glycol Normally Closed Valves Part Number Cv MOPD Oriice A B C D E F G 10E23C2-R1021E 4 150 psi 5/8! 5/8! 11/16! 4-1/16! 2-5/16! 3-1/4! 6-1/2! 1/2! 14E23C2-R1021E 5 150 psi 3/4! 7/8! 11/16! 4-1/16! 2-5/16! 4-3/8! 8-3/4! 3/4! 18E23C2-R1021E 5 150 psi 3/4! 1-1/8! 11/16! 4-1/16! 2-5/16! 5-5/32! 10-5/16! 15/16!

22EH5C2-R1021E 12.2 50 psi 1! 1-3/8! 13/16! 4-1/2! 3-1/8! 4-11/16! 9-3/8! 15/16! 26EH5C2-R1021E 12.2 50 psi 1! 1-5/8! 13/16! 4-1/2! 3-1/8! 4-11/16! 9-3/8! 15/16! 34E24C2-R1021E* 22.5 125 psi 1-1/2! 2-1/8! 1-3/8! 4! 2-3/16! 5-9/16! 11-1/16! 11/32! *34E24C2-R1021E requires a minimum of 5 PSI to operate.

Normally Open Valves Part Number Cv MOPD Oriice A B C D E F G 10E23O2-R1021E 4 150 psi 5/8! 5/8! 11/16! 4-1/16! 2-5/16! 3-1/4! 6-1/2! 1/2! 14E23O2-R1021E 5 150 psi 3/4! 7/8! 11/16! 4-1/16! 2-5/16! 4-3/8! 8-3/4! 3/4! 18E23O2-R1021E 5 150 psi 3/4! 1-1/8! 11/16! 4-1/16! 2-5/16! 5-5/32! 10-5/16! 15/16! 22E25O2-R1021E 12.2 50 psi 1! 1-3/8! 13/16! 4-1/2! 3-1/8!

4-11/16! 9-3/8! 15/16! 26E25O2-R1021E 12.2 50 psi 1! 1-5/8! 13/16! 4-1/2! 3-1/8! 4-11/16! 9-3/8! 15/16! 34E24O2-R1021E* 22.5 125 psi 1-1/2! 2-1/8! 1-3/8! 4! 2-3/16! 5-9/16! 11-1/16! 11/32!
