Listing ID#10210222
ModelSBTF-1500
CategoryBusiness Services
Quick answer

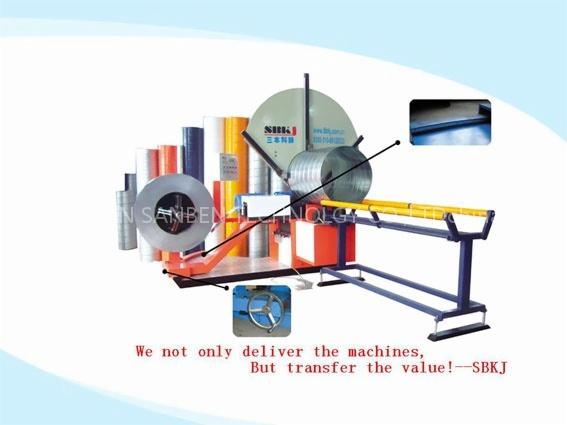

Spiral Tubeformer is a Business Services product. Key specs — Origin: jiangyin; Price Term: FOB.
Product Description
Features: • Special mould for various tube diameters, very easy to change and adjust, no need crane or too much manpower • Large diameter range • High speed synchro flying cutting system • PLC control, convenient operation • Light and small, site work • Perfect swage, without leakage
Main Technical Date:
| Diameter range | Φ80-Φ1500mm |
| Tube Length | 120-8000mm |
| Thickness of Strip | 0.4-1.2mm |
| Width of Strip | 137-140mm |
| Strip Speed | 1-38/min |
| Dimension (L x W x H): | 2650*1550*2000mm |
| Lockseam | Outside tube,on the inside on request |
| Weight | 2200kg |
| Control System | PLC automatic control |
| Compressed air power | 0.5-0.7kmp |
| Electrical | 380V/3PH/50HZ(Acorrding to customer’s request) |
| Main Motor Power | 5.5kw |
| The power of cutting motor | 4kw |
| Suitable Material | Aluminum, Stainless steel, Galvanized steel |
