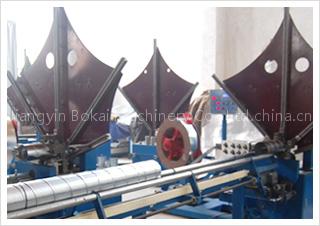

Spiral Tube Former

Based on imported spiral tube former from TORMEC company of Switzerland, through our independent research, we successfully developed a new generation of automatic maintenance-free tube former which performance is stable, and convinient for installation and commissioning.

It have solved main problems of TORMEC machines and other domestic machines (National patent has been applied). And it have also been removed from frequent repair and maintenance.

BKTF-1500B

0.4-2mm Spiral Round Tube Former
(Dedusting Ventilation Tube, Cotton Delivery Tube)
Diameter of Tube: 80-1500

Length of Tube: 120-3,000 or 120-6,000

Working Thickness: 0.4-2mm

Working Materials: Galvanized Sheet0.4-0.2, Stainless Steel Sheet 0.4-1.2, Aluminum Sheet

Working Width of Sheet: 1370.5

Coil Delivering Speed: 1.1-23m/min

Electric Control: PLC or PC

Voltage: 400V/50HZ 460V/60HZ

Main Engine Power: 5.5KW

Cutting Power: 4KW

Working Pressure: 5-7bar

Overall Dimension: 5,150*3,350*2,670

Weight: 2,780Kg
