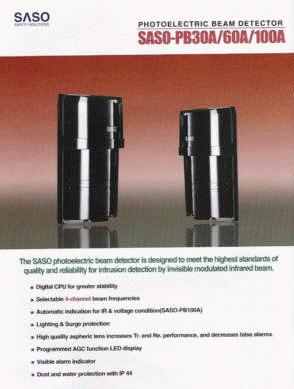

South Korea Photoelectric Beam Detector

Specifications: Specifications: -FEATURES- * Easy beam alignment and setting by LED display, view finder, and monitor jack. * Wide range of alignment angle (horizontal & vertical). * Digital CPU type and selectable 4-channel. * High reliability with IP54 and external light protection. * Auto Gain Control Circuit for environmental conditions (rain, fog, snow etc. ) * Lightening and surge protection * Specially designed aspheric lens for beam stability. * Dynamic and durable design for customer confidence. * Suitable for medium range installation * Adjustable response time for various application. -SPECIFICATION- *MODEL: SASO-PB30A/SASO-PB60A *Protection range:30M outdoor/60M outdoor *Detection method: Twin synchronized pulsed beams *Multi-channel:4 Channel *Infrared beam: Double modulation pulsed beam by IR LED *Response time:50 ~ 700mS *Operating voltage: DC 10.8 ~ 18V(Non polarity) *Current: Receiver-30mA, Trasmitter-42mA *AGC Voltage: Alarm-less than 1.5V, Ready-2~2.2V, Good-More than 2.2V *LED: Transmitter-Green LED(Power) Receiver-Green LED(Good)/Red LED(Alarm) *Alarm output: Dry contact relay 1C Reset: Interruption time+off-relay (approx.1sec) *Tamper output: Dry contact, Micro S/W *Temperature: -20c ~ 60c *Beam adjustment: Horizontal- 90, Vertical- 10 *Mounting site: Indoor/Outdoor *Function: MONITOR JACK OUTPUT, AGC *Bracket: Ploe-U type band, Wall-bracket *Material: Cover-PC resin, Base-ABS resin *Weight: Receiver-335g, Transmitter-348g *IP rating: IP 54 * Specification is subject to change without prior notice for improvement
