South Korea Navigation

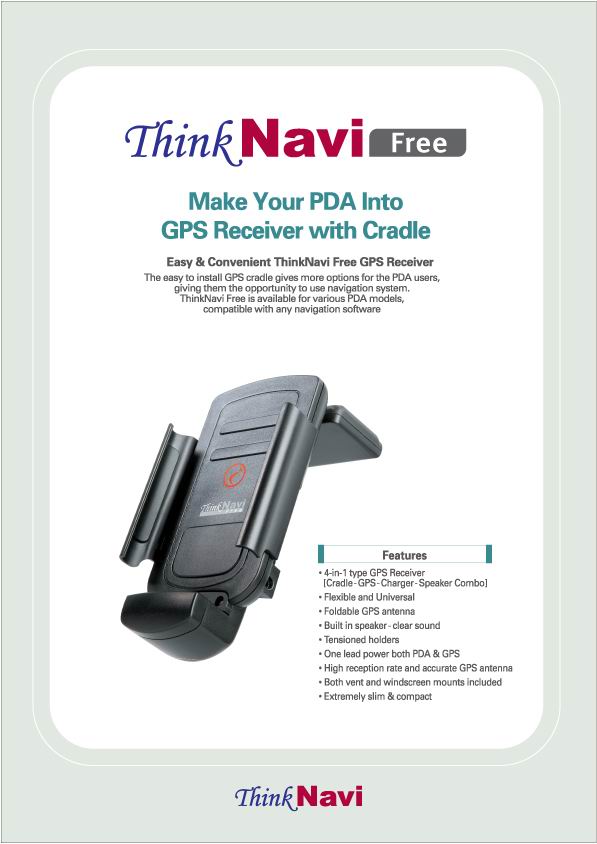

* FEATURE * GPS RECEIVE WITH CRADLE - Cradle - GPS-Charger-Speaker combo ( 4-in-1 type concept ) - Flip-type GPS antenna enables high reception Rate and accuracy. - Compact design - Flexible and Universal! - Internal speaker for maximum voice guidance * AVAILABLE FOR VARIOUS PDAS - HP iPAQ 2210,4150 - HP iPAQ 17xx,37xx - XDA II/MDAII/QTEK2020 - HP iPAQ 2110/2400,47xx - XDA IIs/QTEK 9090 * SPECIFICATION *GPS - SiRF Star II GPS Module - 12 channel GPS receiver - GRF2i/LP RF front-end IC - GSP2e/LP Baseband IC with ARM&TDMI inside - On chip 1Mb SRAM,4Mb up to 16Mb flash Memory - 10 GPIO port * ACQUISITION RATE - Snap start - Hot start - Warm start - Cold start * SENSITIVITY - Tracking Sensitivity -139dBm, typical - Acquisition Sensitivity -134dBm, typical - Re-acquisition Sensitivity - 135dBm, typical * UPDATE RATE:1 time/second * ACCURACY - Position 10meters CEP without SA - Velocity 0.1meters/second, without SA - Time 1 microsecond synchronized to GPS time * DATUM: WGS-84 * FREQUENCY: L1,1575.42MHz * C/A CODE:1.023 MHz chip rate * DYNAMIC CONDITION - Altitude:18,000 meter(60,000 feet) max. - Velocity: - Acceleration:4g, max. - Jerk:20 meters/second3, max * OUTPUT INFORMATION - Baud rate 9600 bps, - NMEA-0183 and SiRF binary - DGPS Protocol: RTCM SC-104, version 2.0, - Type 1,5 and 9 * ELECTRIC PARAMETERS - Input Voltage: DC 12V-24V - Output Voltage: DC 5V 2A - The operating efficiency is over 70% - Noise: - Operation temperature range: -20~+80 - Storage Temperature range: -20~+80
