Specifications: Nlv tws2 is the most versatile and optimized thermal imager for multi-role missions in various severe conditions.

Encapsulating french sofradir\'\'s detector of amorphous silicon micro bolometer un cooled focal plane array(fpa) type, and incorporating nlv (south african technology) servo control and real-time digital image processing circuit, the ir thermal weapon scout nlv tws 2 promotes thermal imaging into next generation.

Nlv tws2 is rugged and optimized for day/night surveillance in severe climatic and weather conditions through thick smoke, fog and total darkness.

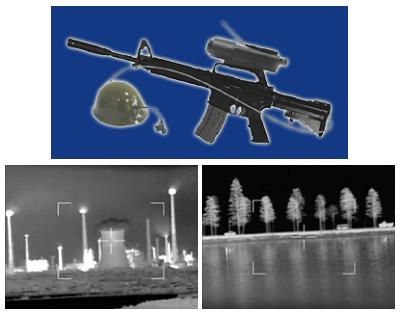

With helmet viewfinder and external large- capacity battery, nlv tws 2 enables a gun not only to systematically conduct search, reconnaissance and precision shooting, but also to flexibly execute complicated missions such as firing at corners or under blind spots.

Small, simple, smart and non-intrusive-seeing without being seen, nlv tws2 is a critical component for any risk mitigation and security safeguarding program.

Rugged and environmentally sealed, nlv tws2 withstands temperature extremes, dust, water and any other severe climatic& weather conditions to perfectly perform mobile, day/night surveillance and complicated military missions.

Integrating a variety of automatic functions such as auto image optimization with auto gain and auto level, nlv tws2 is automated enough to ease workload and enhance battle effectiveness of operators. Low power consumption, small size, light weight, electronic graduation and complete sealed housing adapt nlv tws2 to various mobile or fixed operations.

Armed with helmet and external battery, nlv tws2 can conduct critical multi-role missions including force protection, surveillance, tactical awareness and precision counterattack. Equivalent to us types which is un-obtainable to most countries.

Specifications: Detector:320 x 240 un cooled fpa Frame frequency:50hz Thermal: Magnification:2x,4x,8x electronic digital zoom Detection range: Large objects(plane 17km); car 5km; person 1,2 km Operating temperature: -40degc to +50degc Power consumption: Display: Crt Video output: Pal(ntsc optional) Field of view:20deg x 15deg Housing: Completely sealed aircraft grade aluminum alloy, shock and vibration resistant with weatherproof protection
