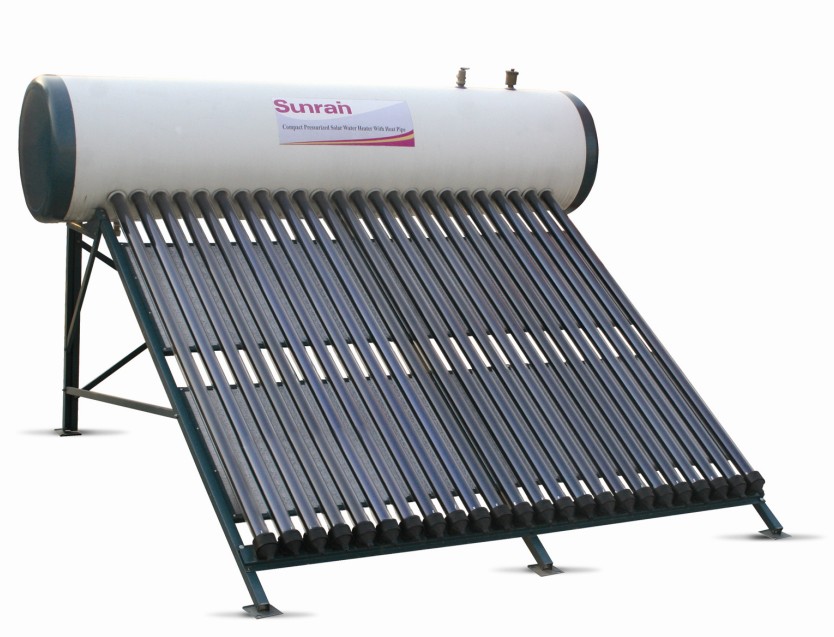

Solar Water Heater With Heat Pipe

Features of Pressurized Solar Water Heater 1. Maintenance Free - Simple structure, no glycol. - Annual and periodical check-ups or maintenance is unnecessary. 2. High Performance - With the cutting-edge vacuum-tube collecting technology, over 92% of sunshine energy is transferred to solar thermal energy for heating - No circulation loss 3.

Increased Reliability - Can directly work with the city net water, without pumps. - The pressurized solar water heater system has an inner tank, which is made by using 1.2mm SUS316 stainless steel and the latest automatic welding technology - High pressure resistance (up to 10 bar) 4.

Year-round Operation -With the freezing-proof technology, this solar hot water heater can be operated for all seasons.

The details of Pressurized solar water heater 1) Inner tank: Stainless steel--1.20mm. 2) Vacuum tube: QB-AL-N/AL-58*1800mm or 47*1500mm. 3) Outer tank: Painted steel-0.4mm; Stainless steel SUS304-0.4mm. 4) Frame: Coated galvanized steel-1.5mm; Stainless steel SUS430-1.5mm. 5) The masterial of insulation: Polyurethane 50mm.

6) The reflector: Aluminum component; AL99.85% surface oxidation. 7) With the heat pipe in the tube and no water in the tube. it can start work very quickly because the heat pipe transfer the heat very quickly. 8) Use pressure is 0.4Mpa
