Solar Super Power DC-link Capacitor
Listing ID#131489
ModelDC-LINK capacitor
CategoryCapacitors
Capacitors

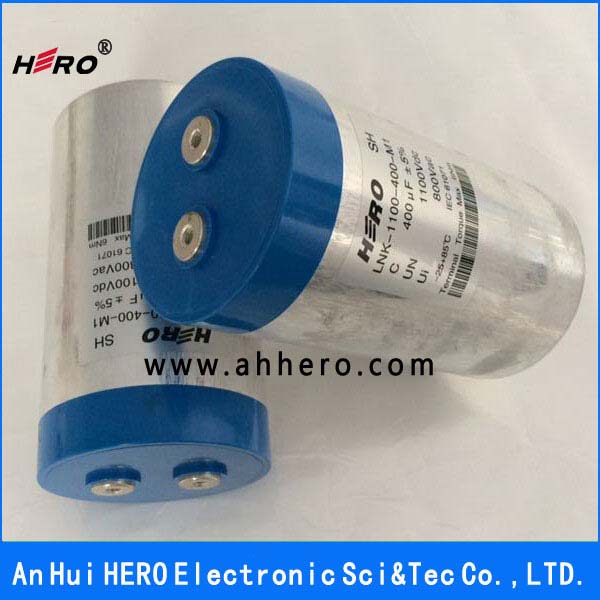

Solar Super Power DC-link Capacitor

Specifications

Brand
HERO
Origin
China
Packaging
professional package
Price Term
EXW/EX-Work,FOB
Payment Term
T/T,L/C,Western Union
Request Quote
Quick answer

Solar Super Power DC-link Capacitor is a Capacitors product. Key specs — Brand: HERO; Origin: China; Packaging: professional package; Price Term: EXW/EX-Work,FOB.

Product Description

Temperature Range -40°C~+85°C Capacity Range 0.47μF~12000μF Capacitance deviation ±5%(J),±10%(K) Voltage 500VDC~15000VDC Dielectric 1.5UN/60S Dissipation tgδ≤0.002(at 1KHz) Insulation resistance CxRs≥5000S(at20°C 100V.DC 60S) Shock current capability dv/dt>50v/μs Flammability UL94V-0 Stray inductance ≤30nH Effective Current 10~80A Reference Standard Enterprise standards in line with IEC61071 ,IEC61881 ,GB17702.1 Case components aluminum,plastic,304 stanless steel Terminals tinned brass nut or screws Installation whatever installation Failure rate 50 FIT
