Listing ID#10039751
ModelPoly-SR-200-240WP
CategorySolar Panels
Quick answer

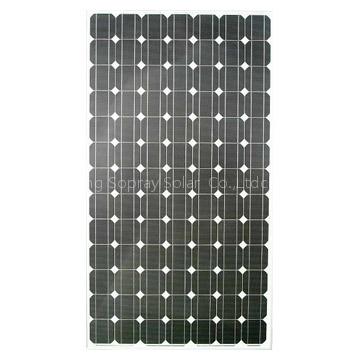

Solar Panel 200w is a Solar Panels product. Key specs — Brand: Sopray; Origin: China.
Product Description
Product Description
Poly-SR156P-200
SR-156P-210
SR-156P-220
SR-156P-230
SR-156P-240
Poly-SR156P-200
SR-156P-210
SR-156P-220
SR-156P-230
SR-156P-240
Mechanical Characteristics:
Solar Cell: Poly-crystalline 156*156mm(6inch)
No. Of cells: 60(6*10)
Dimensions: 1650*992*46mm(65*39.1*1.81inch)
Weight: 20KG(44.06lbs)
Front Glass: 3.2mm(0.13inch)tempered glass
Frame: Anodized aluminium alloy
Junction Box: Cixi Renhe PV-RH701(TUV)
Temperature Coefficents:
Nominal operating Cell Temperature(NOCT) 452C
Temperature Coefficient of Pmax -(0.470.05)%/C
Temperature Coefficient of Voc -(0.340.01)%/C
Temperature Coefficient of lsc -(0.0550.01)%/C
| Model: | Poly-200-240WP |
|---|---|
| Standard: | TUV, VDE, ROHS, IEC, UL, CE |
| Productivity: | 120MW |
| Unit Price/Payment: | FOB, CIF |
| Trademark: | Sopray |
