Solar Panel is a Solar Panels product. Key specs — Origin: China; Price Term: FOB.
Product Description

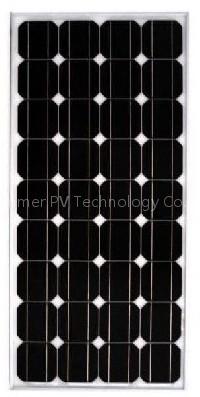

Product name: Solar panel
Model number: YS80W 36D MONO
Solar cell specification: 125*125 monocrystalline silicon cell
No. of cells and connections: 36 series
Dimension: 550*1200*40mm
Weight: 9.0kg
Electrical characteristics
Open circuit voltage: 21.6V
Short circuit current: 4.94A
Max power voltage: 17.8V
Max power current: 4.49A
Temperature coefficient of Isc(%): 0.1/oC
Temperature coefficient of Voc(%): -0.33/oC
Temperature coefficient of Pm(%): -0.23/oC
Temperature coefficient of Imp(%): 0.08/oC
Temperature coefficient of Vmp(%): -0.33/oC
Module efficiency(%): ≥15.5%
FF(%): 75%
Testing conditions
Conditions: STD
Irradiance: 1000W/M2
Operating temperature: -40oC to 80oC
Storage temperature: -40oC to 80oC
For more details, please contact Ms Hope.
