Listing ID#10039783
ModelFD-GF-04
CategorySolar Panels
Quick answer

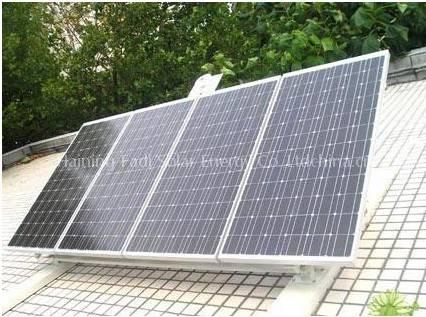

Solar Panel is a Solar Panels product. Key specs — Origin: Zhejiang,China; Price Term: FOB.
Product Description
Tolerance 3% Specification:
Cell Monocrystalline silicon solar cells 125*125mm cells 72(12*6) Dimension of Modules(mm) 1581*809*40 Weight(kg) 15.5
Limits Operating Temperature -40~+85℃ Storage Temperature -40~+85℃ Maximum system voltage 1000 VDC max. Hail impact:diameter of 28mm with impact speed of 86km/h
Temperature and Coefficients NOCT 48℃+-2℃ Voltage temperature coefficient(%/K) -0.34 Current temperature coefficient(%/K) 0.09 Power temperature coefficient(%/K)
