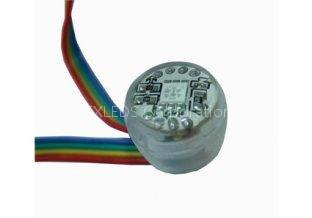

Smd LED Module REX20-1RGBD

Technical Specification   Part NO

Diameter

Working Voltage

LED Number

Beam Angle

IP Rate

Current

Max. Watts

RFK20-1RGBD

Φ20mm

DC5V

30 LEDs/group

160 Degree

IP68

60mA

0.3w

Pixel R . It is made by 1R1G1B chip in 1 5050 SMD LED which has very small volume. It also has very stronge brightness and easier installation and maintenance. Each RGB LED Direct Lighting has one IC in it.

It not only can create the color effectives as following: Seven Color Flash, Leaning Color Fade, Full Color Fade, Loop, Seven Fixation Color, but also can create the effect as you desire, such as word, picture, your logo etc. It is applied in channel letter and sign.

Feature ● LEDs are housed t by injection machine and using UV powder to protect from UV radiation ● REX20-1RGBD as Lighting resource is ideal for outside channel letter and the bright lighting projects for the large-scale panel with super brightness and vivid color. ● Totally Waterproof.

IP68. ● The cover is made of proper flexible silica gel so that it is more convenient and steady for installation. you can push or pull it easily from hole. ● LEDs can be taken out freely. you can push or pull it easily from hole which is convenient for installing and maintaining because of reasonable designing. ● Graceful exterior with transparent color, or it can be made to any color match with your channel. ● The length of connecting wire is 50mm±5%; The Max distance between two holes is 50mm.

Installation
