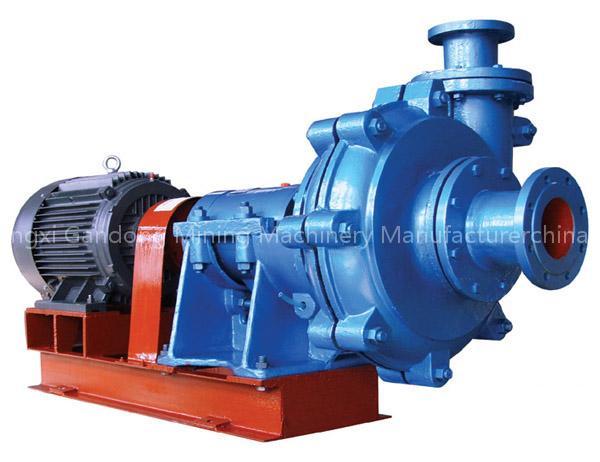

Slurry Pumps

Descriptions of The ZJ and ZJL series slurry pumps The ZJ and ZJL series slurry pumps is the our company according to the market demand, the absorption domestically, outside the advanced technology develops the design the series product. Pumps uses the outstanding water power model design, the efficiency high, the performance is good. The double pump housing structure, the installment service is convenient.
Rotational speed: Electrical machinery straight association transmission 2900/1480/980/730/590/ r/min
Between the belt pulley the association transmission conforms to the customer requirement
Medium temperature: General <= 80 ℃ Special may reach 110 ℃
Solid fluid mixture weight concentration: Mortar density <=45% Pulp density <= 60%
Current capacity: 30-2000m3/h
Lifts the scope: 15-30m
Horizontal type
The flexible coupling straight association transmission (requests below 160kW according to customer to be possible to use belt pulley variable transmission)
Pumps the export to be possible according to need to revolve 4directions according to 90 ℃ gaps (normally to supply goods exportation vertically to be upward)
According to needs to pump may connect the use Meaning of pump model: e.g. 200ZJ-I-A70 200----Outlet diameter(mm) ZJ----Slurry pump I----Single stage pump II----Two stage pump A70----Impeller Diameter (mm)

Technical Specifications of ZJ series slurry pumps

Model	Allowable max.power of ass.motor Kw	Clear water performance					Particle handled occasionally mm	Curve number
		Capacity M3 /H	Head m	Speed r/min	Max.eff %	NPSH m
300ZJ-1-A110	560	746-1700	33.1-78.0	400-590	71.0	5.0	≤ 49	ZJ300110
300ZJ-1-A100	450	619-1826	27.2-67.1	400-590	81.0	4.1	≤ 49	ZJ300100
300ZJ-1-A100	400	589-1835	24.6-60.6	400-590	81.0	4.1	≤ 49	ZJ30095
300ZJ-1-A95	560	632-1844	33.4-78.0	500-730	82.0	4.8	≤ 45	ZJ30090
300ZJ-1-A90	450	596-1742	29.9-69.6	500-730	82.0	4.8	≤ 45	ZJ30085
300ZJ-1-A85	630	647-2333	16.7-76.8	500-980	80.4	6.0	≤ 51	ZJ30070
300ZJ-1-70	500	601-2166	14.4-66.2	500-980	80.4	6.0	≤ 54	ZJ30065
300ZJ-1-A65	250	403-1568	10.0-48.0	500-980	81.3	5.5	≤ 38	ZJ30056
300ZJ-1-A56	560	504-1470	39.9-91.0	500-730	79.0	5.3	≤ 38	ZJ25096
250ZJ-1-A78	450	473-1378	35.0-80.0	500-730	79.0	5.3	≤ 42	ZJ25085
250ZJ-1-A75	800	384-1504	31.4-129.8	500-980	77.0	5.1	≤ 42	ZJ25083
250ZJ-1-A73	710	375-1468	30.0-123.8	500-980	77.0	5.1	≤ 42	ZJ25080
250ZJ-1-A70	630	361-1415	27.8-115.0	500-980	77.0	5.0	≤ 42	ZJ25078
250ZJ-1-A68	630	352-1380	26.5-109.3	500-980	77.0	5.0	≤ 40	ZJ25075
250ZJ-1-A65	500	301-1480	22.3-98.4	500-980	81.6	4.9	≤ 40	ZJ25073
250ZJ-1-A63	500	293-1441	21.0-93.2	500-980	81.6	4.9	≤ 40	ZJ25070
250ZJ-1-A60	450	288-1380	19.4-85.7	500-980	81.6	4.8	≤ 40	ZJ25068
200ZJ-1-A75	355	280-1341	18.3-80.9	500-980	81.6	4.8	≤ 40	ZJ25065
200ZJ-1-A73	315	305-1249	15.4-68.5	500-980	79.5	4.7	≤ 40	ZJ25063
200ZJ-1-A70	315	295-1211	14.5-64.3	500-980	79.5	4.7	≤ 40	ZJ25060
200ZJ-1-A68	250	281-1152	13.1-58.4	500-980	74.5	4.7	≤ 31	ZJ20075
200ZJ-1-A65	355	230-900	24.0-103.7	500-980	74.5	4.5	≤ 31	ZJ20073
200ZJ-1-A63	355	223-876	22.7-98.2	500-980	77.5	4.5	≤ 31	ZJ20070
200ZJ-1-A60	315	240-950	19.9-85.8	500-980	77.5	4.4	≤ 31	ZJ20068
200ZJ-1-A58	280	233-923	18.8-81.0	500-980	79.3	4.4	≤ 35	ZJ20065

Technical Specifications of ZJL series slurry pumps

Model	Speed r/min	Clear water performance				Motor
		Capacity m3/h	Head m	Power of shaft kW	Eff %	Type	Power/Voltage kW/V
150ZJL-A35	980	198	17.9	15.3	63.1	Y250M-6 V1	37/380
		322	13.2	17.5	68.1
		364	12.1	18.0	66.8
	730	147	10.0	6.3	63.1	Y200-8 V1	15/380
		247	7.3	7.2	68.1
		271	6.7	7.4	66.8
	590	119	6.5	3.3	63.1	Y160L-6 B3	11/380
		200	4.8	3.8	68.1
		219	4.4	3.9	66.8
100ZJL-A34	1480	157	36.8	26.1	60.2	Y255M-4 V1	45/380
		214	32.6	29.2	65.1
		293	24.4	33.5	58.2
	970	103	15.8	7.4	60.2	Y180L-6 V1	15/380
		140	14.0	8.2	65.1
		192	10.5	9.4	58.2
80ZJL-A36	1480	105	45.5	25.0	52.1	Y255M-4 V1	45/380
		144	41.4	27.9	58.2
		201	32.5	32.8	54.2
	970	69	19.5	7.0	52.1	Y180L-6 V1	15/380
		94	17.8	7.8	58.2
		132	14.0	9.3	54.2
65ZJL-A30	1470	38	34.7	8.2	43.7	Y180M-4 V1	18.5/380
		58	31.9	9.7	51.9
		98	26.0	13.4	51.7
	960	25	14.8	2.3	43.7	Y132M2-6 B5	5.5/380
		38	13.6	2.7	51.9
		64	11.1	3.7	51.7
50ZJL-A20	1440	17	10.7	1.4	34.9	Y112M-4 B5	4/380
		25	9.2	1.6	38.6
		38	5.9	2.0	31.2
	910	11	4.3	0.4	34.9	Y90L-6 B5	1.1/380
		16	3.7	0.4	38.6
		24	2.4	0.5	31.2
40ZJL-A25	1440	10.1	21.5	2.3	26.1	Y132S-4 V1	5.5/380
		18.4	19.0	2.6	36.6
		22.9	16.8	2.8	37.6
	910	6.4	8.6	0.6	27.9	Y90L-6 V1	1.1/380
		11.6	7.6	0.7	42.4
		14.5	6.7	0.7	44.6
40ZJL-A21	1440	9.5	17.0	1.6	27.9	Y112M-4 V1	4.0/380
		20.3	15.3	2.0	42.4
		25.9	14.1	2.2	44.6
	910	6.0	6.8	0.4	27.9	Y90L-6 V1	1.0/380
		12.8	6.1	0.5	42.4
		16.4	5.6	0.6	44.6

Descriptions of SP series submerged slurry pumps
Under the SP submerged slurry pumps for the vertical centrifugal dregs thick liquid pumps, plunges under the fluid, uses into transport the agreeability, the thick pellet, the highly concentrated dregs thick liquid. Does not need any axis to seal with the axis seals the water, is insufficient in the absorption quantity under the operating mode also can the normal work. SP pumps has flowed the part to be made by the wear-resisting metal. SPR pumps plunges under the fluid the spare part to bring the rubber outer lining, is suitable to transporting the non- edges and corners the agreeability dregs thick liquid. According to the dregs thick liquid pond liquid level height, may choose the different length the pump driving shaft or the induction pipe. Uses the many kinds of speeds and the many kinds of aberrations way, causes to pump under the best operating mode moves, service life long, the movement benefit is high, can satisfy many kind of bad transportations condition. Mainly is suitable for the transportation corrosiveness, the big pellet, the highly concentrated dregs thick liquid. Widely applies to department and so on metallurgy, mine, coal, electric power, building materials, environmental protection.

SP pumps is the vertical centrifugal dregs thick liquid pumps, theater pump entrance is vertical vertically to under, the exportation another side which pumps is being upward. Upside pumps mainly filters the outline, the pump body, the impeller, the axis by under, the protection board, components and so on support is composed, pumps has the bearing supporting; Pumps installs under the fluid, does not want any axis to seal, has flowed the part to use the anti-friction material.

This pumps the transmission pattern is BD and the DC two kinds, namely leather belt transmission and straight joint transmission. Plunges under the fluid the depth to be possible to decide in the standardize scope according to user's actual need.

Impeller

Meaning of pump model:

Filter screen

Casing

e.g. 40PV—SP(SPR)
　　　40—Outlet diameter (mm)
　　　PV—Vertical bracket
　　　SP—Submerged slurry pump
　　　SPR—Rubber lined submerged slurry pump Technical Specifications of SP series slurry pumps

Model	Outlet diameter mm	Speed r/min	Clear water performance			Power Kw	Impeller diameter (mm)
			Capacity (m3/h)	Head m	Eff %
40PV-SP(R)	40	1000-2200	17-43.2	4-28.5	40	15	188
65QV-SP(R)	65	700-1500	17-114	5-31.5	60	30	280
100RV-SP(R)	100	500-1200	54-289	5-36	62	75	370
150SV-SP	150	500-1000	108-479	8.5-40	52	110	450
200SV-SP	200	400-850	189-891	6.5-37	64	110	520
250SV-SP	250	400-750	261-1089	7-33.5	60	200	575
300TV-SP	300	350-700	288-1267	6-33	50	200	610
