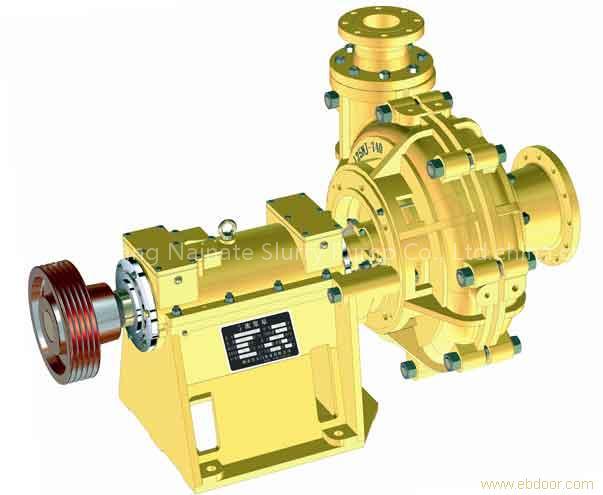

Slurry Pump and Parts-Mineral Machinery

1) Cantilevered, horizontal, centrifugal, single stage slurry pump
2) High head, high efficiency.
3) Widely application: They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industrial departments.
4) Long bearing life: The bearing assembly is with large diameter shaft and short overhang.

5) Wear resistant wet parts: The wet parts are made of hard metal (24-28% Chrome alloy).
6) Easily replaceable liners: Liners are bolted to the casing.
7) Simple maintenance throat-bush: The mating face of the throat bush is tapered, so the wear is reduced and removal is simple.
8) Easy adjustment of impeller: An impeller adjustment mechanism is provided below the bearing housing.
9) Centrifugal seal, mechanical seal and packing seal are
