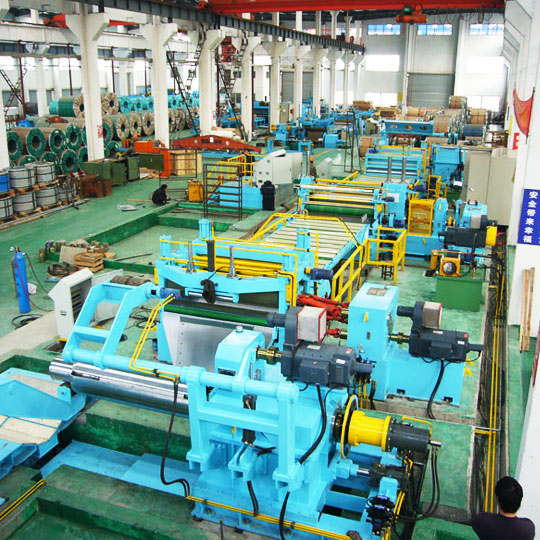

Slitting line - KJS Specificaton & Trade Terms
Model | KJS |
---|
Place Of Origin | CHINA |
---|
Gurantee | 1 YEAR |
---|
Certifications | CE |
---|
Price Term | EX-Work |
---|
Payment Term | T/T |
---|
Loading Ports | SHENZHEN |
---|
Delivery Time | 60 dayds |
---|
. Technical Data
Model No. Coil thick
(mm) Coil width
(mm) No. of slits Tolerance
(mm) Speed (m/min) Coil weight
KJS-3X550 0.5-3mm 100-500 30-6 +/-0.1 60 5tons
KJS-3X850 0.5-3mm 100-800 30-6 +/-0.1 60 5tons
KJS-3X1300 0.5-3mm 500-1250 30-15 +/-0.1 50-120 15tons
KJS-3X1600 0.5-3mm 500-1600 30-15 +/-0.1 50-120 15tons
KJS-3X2000 0.5-3mm 500-2000 30-15 +/-0.1 50-120 20tons
II. Introduction of the slititng line
slitting line machine not only for the steel serivice cutting industry, but also for the pipe industry. A lot of customers make the pipes before slitting the large coil to the small size of coils.
Slitting line can do uncoiling, slitting and recoiling works, make coil steel to any needed width coil steel. It mainly includes coil car, uncoiler, coil guide, slitting machine, scrap winder, tension unit, recoiler and coil car, hydraulic system, Etc. It mainly used in coil or hot rolling carbon steel, silicon steel and all the other kinds of metal materials with surface spreading.
This line can be adjusted to do recoiling or dividing work to meet customer's demand.
III. Machine parts in the working line
1. Coil car
2. Decoiler
3. Peeler entry table
4. Straightener.
5. Shearing machine
6. Loop table
7. Coil guide and pinch roll
8. Slitting machine
9. Scrap winder (both sides)
10. Loop table
11. Separator and tension table
12. Deflector roll and exit threading table
13. Recoiler
14. Over arm separator in the recoiler.
15. Exit coil car for recoiler
16. Hydraulic system
17. Pneumatic system
18. Electrical control system
