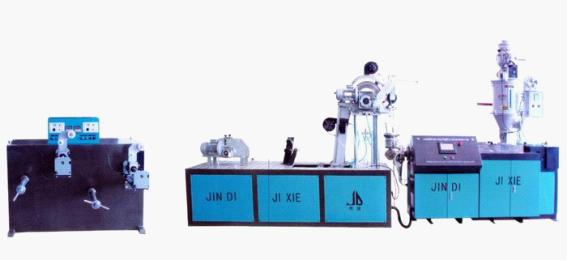

Single wing labyrinth drip irrigation belt machine

Usage

Single wing labyrinth drip irrigation belt production line is specialized in producing plastic irrigation belt, the drip irrigation belt is widely used in water saving and irrigation of agriculture field (cotton, grapery, peanut and wheat etc), greenhouse, garden, mountain and hill region.

Main Components

No Machine Model

1 Single-screw extruder SJ50

2 Die head and Net changing device

3 Forming wheel Φ382

4 Diameter measuring instrument

5 Traction machine

6 Winding machine

7 Vacuum on the feeder

8 Drying hopper

9 Electric control cabinet

Details

Single - Screw Extruder model:SJ-50

diameter of screw:50mm

rotating speed of screw:100rpm

motor power: 15KW

barrel heating power: 12kw

barrel heating way: use casting aluminum heater

Max. extruding capacity: 50kg/h

central height of extruder: 800mm

weight2500kg main motor control method: frequency converter

temperature control method: PID

material of screw and barrel: 38CrMoAIA, nitriding depth is 0.4-0.7mm

#12288;　 hardness≥700HAV driving way: hard tooth-faced speed reducer

Die Head and Net Changing Device

Shape of die head: spiral

Characteristic of die head: hard chromium plating after polishing in inner runner

Die head heating way: stainless steel mica heating circle

Heating power: 5kw

Filter changing way: durable filter

Forming wheel Material: stainless steel

Diameter: Φ382 /Φ478

Dripper distance: 10-50cm

Flow rate: 1.0-4.0L/h

Vacuum bump power:1.5kw

Driving motor power: 0.75kw

Driving motor control method:frequency converter control

4. Calibrating instrument Working voltage:220V

Measurement accuracy:0.1mm

Traction machine Traction way: three roller

Driving motor power:0.55kw

Driving motor control method:frequency converter control

#12288;　　　　　　　　　　　　　　&#12288

6. Winding machine Coiling way:double-station rolling method

Coiling control: torque motor

Torque motor power: YLJ100-5-8

Length control method: photoelectric swift

Vacuum feeder : it is controlled by computer and easy to operate.

Drying hopper Capacity: 25KG

Heating power: 2.7kw

Fan power: 135kw

Max temperature: 135°

Electric control cabinet Frequency converter of main motor: 15KW (HOLIP)

Frequency converter of forming wheel: 1.5KW ( HOLIP)

Frequency converter of traction machine:1.5KW (HOLIP)

Brand of temperature control instrument: YATAI(shanghai)

Brand of contactor: DELIXI

Brand of air swift: DELIXI

Brand of other electric parts: DELIXI
