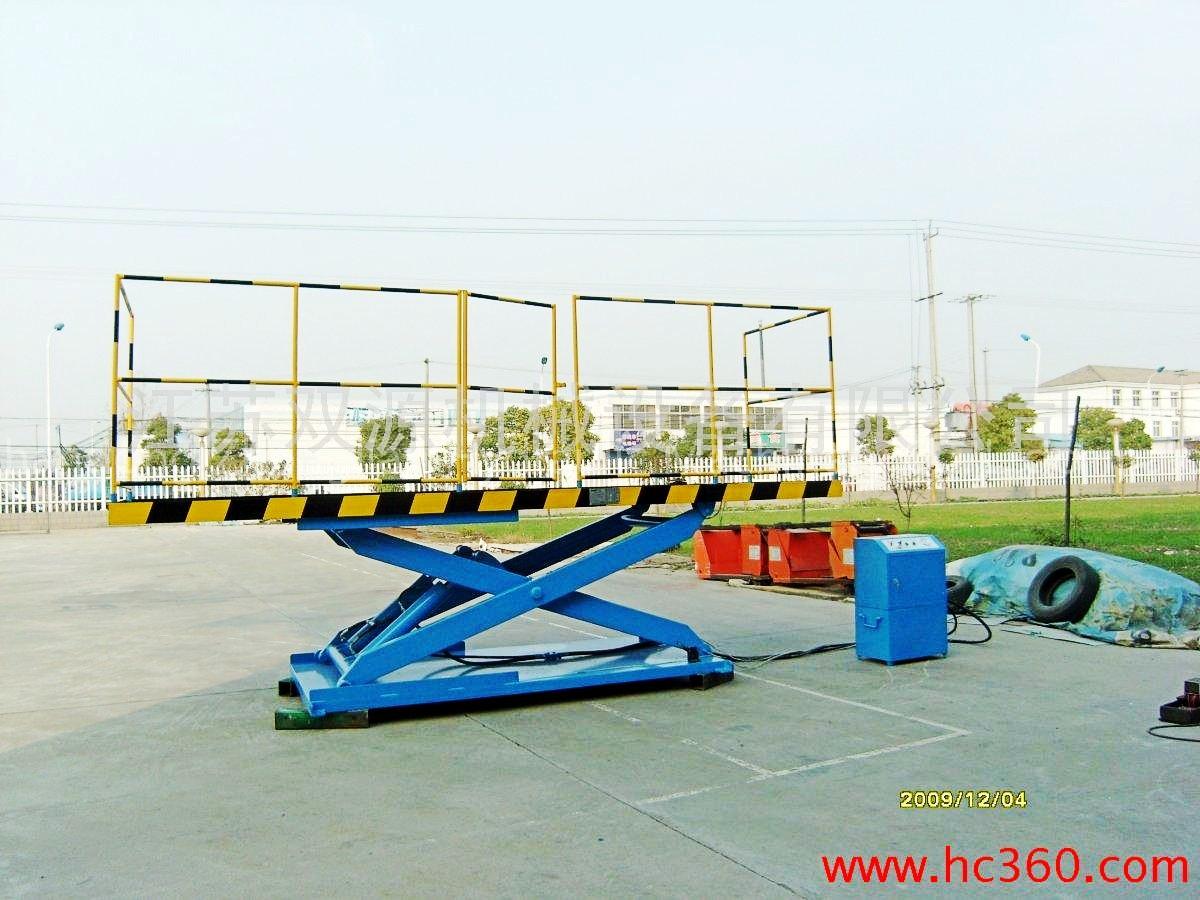

Single scissor lifting table
Specifications
- Brand
- scissor lift
- Origin
- China
- Price Term
- FOB
Single scissor lifting table is a Office Desks product. Key specs — Brand: scissor lift; Origin: China; Price Term: FOB.
Product Description
1.Capacity:1t-28t
2.Table size:MIN1200*1200mm
height:2m,4m,6m,8m,10m
Specification of single scissor lift:
Model | Table size | Capacity | Net lifting height | Min height | Total dimension |
SJG1-1.5 | 1200×1200mm | 1T | 1.5m | 560mm | 1200×1200×560mm |
SJG0.3-2.9 | 1400×750mm | 0.3T | 2.9m | 710mm | 1400×750×710mm |
SJG2-4 | 1600×1600mm | 2T | 4 m | 670mm | 1600×1600×670mm |
SJG0.3-5 | 1800×1200mm | 0.3T | 5m | 760mm | 1800×1200×760mm |
SJG1-1.5 | 2000×1500mm | 1T | 1.5m | 520mm | 2000×1500×520mm |
SJG1-4.2 | 2000×2000mm | 1T | 4.2m | 850mm | 2000×2000×850mm |
Additional:
2. They have two mainly types according to different sites. One is to be sited on a special place to loading cargos and then lifting to a certain height to handle and move the cargos.
3. The other type is sited in a lift pit and accessorial tracks. The table of lift is in the same level with the ground which is convenient to move the cargo onto it. In this way it also can be called freight elevator.
The scope of working:
This kind of lift is usually used in production lines with many different work levels, cargos moving between stairs, truck material handling work and changeable height working table like operation table etc.
