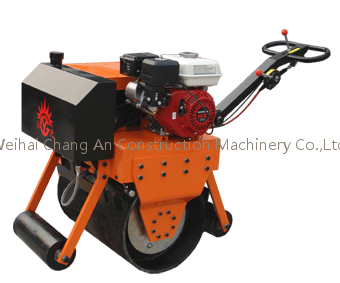

Single-round Vibratory Roller
Specifications
- Brand
- Lu Gong,XCMG,Fangyuan
- Origin
- China
Single-round Vibratory Roller is a Construction & Real Estate product. Key specs — Brand: Lu Gong,XCMG,Fangyuan; Origin: China.
Product Description
1)Product Name:Single-round Vibratory Roller 2)Model of the Single-round Vibratory Roller:ZLR18 3)Category:road machine 4)ZLR18 vibratory roller-use hydraulic transmission, two-way walking around, vibration using centrifugal clutch, CVT, pulling the throttle through the direct control of exciting force size.
A small, compact and easy to transport, work force, high efficiency.
5)Engine Model HONDA GX160 engine power 5.5 Hp hydraulic motor models BM1-160 gear pump models CBNF-304 manual valve Model 34 SM-1 10H-W relief valve models YF-L10-H4 hydraulic oil Model L-HM46 # antiwear Hydraulic oil drum φ424 mm diameter steel wheels width of 600 mm walking speed 0-1.8 Km / h frequency 68 Hz exciting force 18 KN (1.83T) climbing angle ≤ 20 ° compaction depth of 150 mm (soil) compaction depth of 100 Mm (asphalt)weight of 325 ± 5Kg hydraulic fuel tank capacity 24 L add oil:> 17 L <19L appearance size 1350 × 820 × 990 mm (L × W × H)
