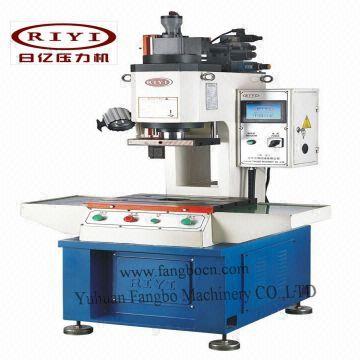

Single action hydraulic press with C frame

Product feature

1. The C-body design, whole body cast, high rigid.

2. With a filling valve, have a high speed.

3. Key and Foot Switch two cycle start modes. Pressure Speed and time can be adjusted.

4. Safety designed, using both hands to operate, with emergency stop button and jog up and down function.

5. With PLC control, easy programming process control action, positioning accuracy, high precision.

6. Widely used in parts of the press forming, stretching, bending, punching, stamping, shaft alignment and press-fit etc.

7. Infrared protection can be configured (Optional).

Technical Parameters

Theoretical output pressure 100KN(10t)

Rated oil pressure 11Mpa

Max stroke 200mm

Max Opening Height 380mm

Throat Depth 200mm

Fast-forward speed 200mm/s

Feeding speed 10~70mm/s

Max Return speed 150mm/s

The size of the working table 500 X 400mm

The height of the working table 780mm

Size of the mold mounting hole Φ32mm

Power of motor 3.7kw

Power(3ΦAC,50Hz)380V

Weight 990kg

The filling valve can be optional.

We can also design the special hydraulic press machine, hydraulic riveting machine, pneumatic machine for your actual needs.

Welcome to contact me at anytime.
