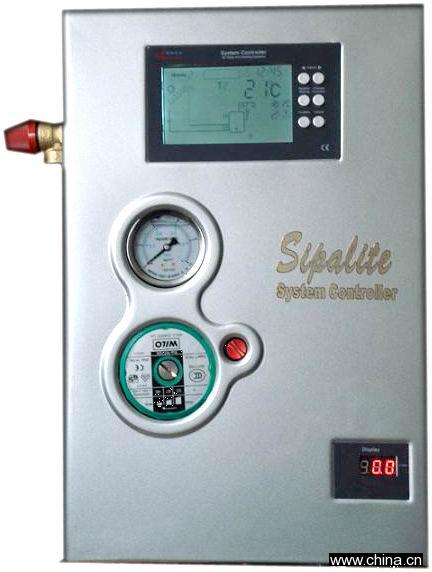

Single Pipeline Working Station System

Model No.:SP116 Product Origin:China Brand Name:Sipalite Price Terms:FOB, CIF Payment Terms:T/T, L/C Certification:CE Description:Main technical data1.Externality size: 450mm*310mm*150mm2.Max. self consumption: less than 3W3.Accuracy of temperature measuring: around 2Celsius4.Range of temperature measuring: 0-99 Celsius5.Power of controlled pumps (temperature difference circulation pump, water-usingend circulation pump): less than 600W6.Electronic booster power: less than 3000W7.System working pressure: 0.6MPA8.Input signal: 3 temperature sensors (for top of tank, for heat collector, for bottomof tank)9.Output signal: 3 (electronic booster, temperature difference circulation pump andwater-using end circulation pump)Packing: cartonMain functions1.Display clock and week 2.Display temperature3.Temperature difference circulation pump provide three working scopes for choose4.Temperature difference circulation5.Three periods timing circulation for pipeline6.Three periods timing heating collector frost protection8.Memory function9.Display the fault of water tank temperature10.Display the flux11.Display the system pressureWe have other single pipeline working station for your choose,welcome your inquiry, we will reply at the first time.
