Single Mast Aluminum Lift
Listing ID#10156580
Modelas follows
CategoryIndustrial Power Supplies
Industrial Power Supplies

Single Mast Aluminum Lift

Specifications

Brand
ligao
Origin
China (Mainland)
Price Term
FOB
Request Quote
Quick answer

Single Mast Aluminum Lift is a Industrial Power Supplies product. Key specs — Brand: ligao; Origin: China (Mainland); Price Term: FOB.

Product Description

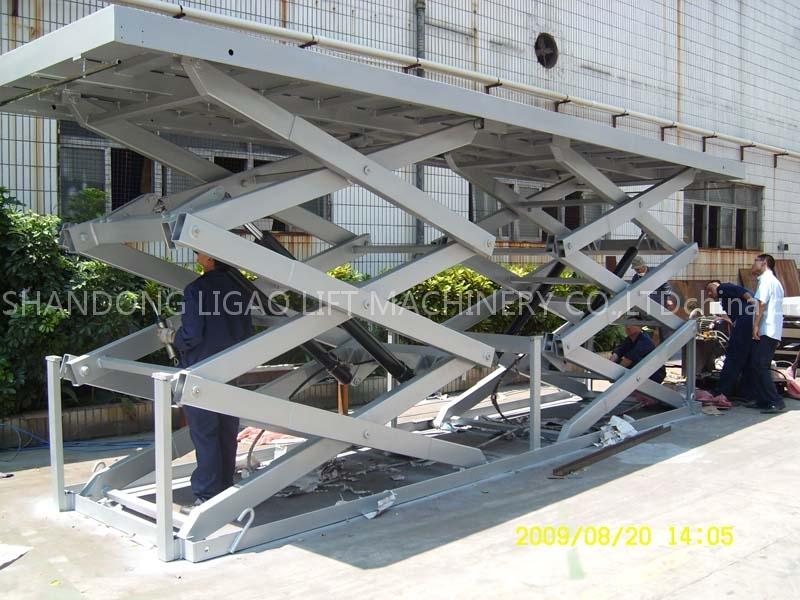

Our company is professional in making scissor lift, such as mobile scissor lift and stationary scissor lift.

According to users requirements, we can design single fork or multiple fork lift stages and explosion-proof electrical lift stages as well as other abnormal lift stages in different sizes and tonnage, and several unconventionality model.

We have regular model of lift kept in our warehouse,they can be delivered as soon as the order we manufacture the machine according to the order that the customer gives, with special design.

The usual power supply is external connection electricity variety of 220v,240v,380v 400v. and they also can be equipped with handle control, in case the power is not available that the lift can work..

Model

Capacity

Table Size

Max height

Work height

Total dimension

Net weight

SJY0.3-4

300Kg

1500*750mm

4m

5.7m

1700*900*1100mm

630kg

SJY0.3-6

300Kg

1500*750mm

6m

7.7m

1700*900*1300mm

760kg

SJY0.3-8(small)

300Kg

1650*750mm

8m

9.7m

1870*900*1410mm

880kg

SJY0.3-8(big)

300Kg

1800*1200mm

8m

9.7m

2300*1500*1420mm

1240kg

SJY0.5—8

500Kg

1800*1200mm

8m

9.7m

2300*1500*1450mm

1400kg

SJY0.8—8

800Kg

1800*1200mm

8m

9.7m

2300*1500*1540mm

1480kg

SJY0.3-9

300Kg

1800*1200mm

9m

10.7m

2300*1500*1500mm

1000kg

SJY0.5-9

500Kg

2000*1200mm

9m

10.7m

2500*1500*1550mm

1300kg

SJY0.3-10

300Kg

2120*l200mm

10m

11.7m

2600*1500*1550mm

1400kg

SJY0.5-10

500Kg

2120*l200mm

10m

11.7m

2600*1500*1550mm

1550kg

SJY1-10

1000Kg

2120*l500mm

10m

11.7m

2600*1950*1740mm

1930kg

SJY0.3-11

300Kg

2120*1500mm

11m

12.7m

2600*1800*l660mm

1630kg

SJY0.5-11

500Kg

2400*1500mm

11m

12.7m

2900*1800*1720mm

2040kg

SIY0.3-12

300Kg

2600*1500mm

12m

13.7m

3050*1950*1740mm

2170kg

SJY1-12

1000Kg

2600*1700mm

12m

13.7m

3120*l900*2000mm

3200kg

SJY0.3-14

300Kg

2950*1500mm

14m

15.7m

3450*1950*l950mm

2630kg

SJY0.3-16

300Kg

3500*l800mm

16m

17.7m

4010*2000*2000mm

4200kg

SJY0.3-18A

300Kg

3500*l800mm

18m

19.7m

4010*2000*2200mm

4550kg

SJY0.3-l8B

300Kg

4050*2000mm

18m

19.7m

4750*2200*2550mm

4700kg

This model of lift is designed and produced on the special requirement of customers, on four aspects: carrying capacity, lifting height, dimension of table, and power supply.
They have two mainly types according to different sites. One is to be sited on a special place to loading cargos and then lifting to a certain height to handle and move the cargos.
The other type is sited in a lift pit and accessorial tracks. The table of lift is in the same level with the ground which is convenient to move the cargo onto it. In this way it also can be called freight elevator.
This kind of lift is usually used in production lines with many different work levels, cargos moving between stairs, truck material handling work and changeable height working table like operation table etc.
