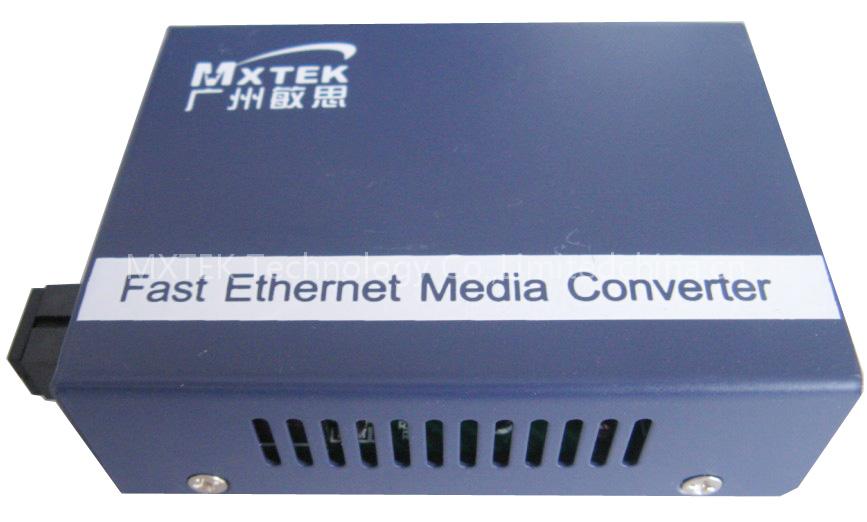

Single Fiber Media Converter

Single Fiber Media Converter Item No.:OPT-100-SM-S20 Description: The fiber media converter transform the transmission media of Ethernet signal from CAT5 to optical fiber,it can extend the transmission distance to serveral kilometers or hundred kilometers.Using media converter is a economical solution to achieve long distance transmission base on current status.

Specifications: -10/100M auto-adaption -single mode single fiber 20km -full/half duplex auto-negotiation -OEM/ODM available

Features: 1. Compliance with the standards of IEEE802.3,IEEE802.3u,IEEE802.3z 2. Telecommunication operating standard, MTBF more than 100,000 hours 3. Electric interface support 10/100/1000M Auto-Negotiation mode,Auto-MDI/MDIX 4. High-efficiency converting core built in, capacity of cache is 1Mbit, MAC capacity is 1K, restrain broadcasting storm 5. Support overlength package transmission, MAX 1552 Byte 6. Support QoS, ensure VIOP package transmission rate 7. Support STP, constitutes a redundant network 8. Strict on the chosen of raw material and QC to ensure high quality and reliability of the products Technical Parameters: Fiber Interface: Interface

Type: FC/SC/ST optional Working Wavelength: Multi-Mode 850nm/1310nm, Single Mode 1310nm/1550nm Transmission Distance: Multi-Mode 0~2Km, Single Mode 0~120Km Ethernet Interface: Connector: RJ45 Connector Rate: 10/100M,full/half duplex auto-negotiation, auto-mdi/mdix Max Frame

Size: 1552Byte Other Parameters: Input

Voltage: AC100V~260V/50~60Hz DC + 5V DC -36 ~ 72V Whole

Power:
