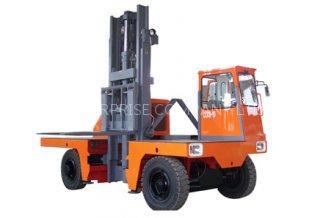

Side Forklift CCCD Series
Specifications
- Origin
- China (Mainland)
- Price Term
- FOB
Side Forklift CCCD Series is a Furniture Making Machines product. Key specs — Origin: China (Mainland); Price Term: FOB.
Product Description
Transmission | Hydraulical | ||||
Model | CCCD-3C | CCCD-4C | CCCD-5A | CCCD-6A | CCCD-10 |
Code | M3D | M4D | M5D | M6D | M10 |
capacity/CG of cargo (kg/mm) | 3000/600 | 4000/600 | 5000/600 | 6000/600 | 10000/760 |
Max. lift height（laden）(mm) | 3500 | 3500 | 3550 | 3550 | 3600 |
Max. lift speed （laden）(m/s) | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.3 | ≥0.25 |
Max. traveling speed （laden）(km/h) | 20 | 20 | 25.5 | 25.5 | 24 |
Fork tilt anger (front/rear) | 3°/5° | 3°/5° | 3°/5° | 3°/5° | 3°/5° |
Minimum turning radius (mm) | 4300 | 4300 | 4550 | 4450 | 5800 |
Gradeability （laden）(%) | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 |
Minimum ground clearance （laden）(mm) | 170 | 170 | 180 | 180 | 220 |
Platform height (mm) | 920 | 920 | 990 | 990 | 1340 |
Platform width (mm) | 1150 | 1150 | 1230 | 1220 | 1760 |
Fork length (mm) | 1150 | 1150 | 1200 | 1200 | 1650 |
spacing (mm) | 940 | 940 | 1020 | 1012 | 1310 |
Axle spacing (mm) | 2460 | 2460 | 2700 | 2700 | 3700 |
Wheel spacing (mm) | 1600 | 1600 | 1715 | 1715 | 2200/2110 |
Overall dimension (L×W×H) (mm) | 4420×2035×2700 | 4420×2035×2050 | 4712×2065×2800 | ||
