SiC Heating Element

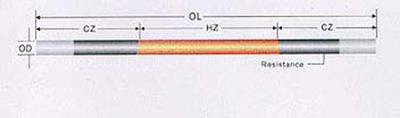

Order sample: OD=54mm, HZ=1575mm, CZ=419mm, OL=2413mm, Resistance=0.9ohms.Please specify as: dia54x1575x2413mmx0.9ohms When you place order, please tell us following data:a). Outer diameter (OD)b). Length of Hot zone (HZ)c). Length of Overall (OL)d). Resistance (at 1050C 50C) Brother-GD type elements are made from high-density, high-purity silicon carbide, which is the most popular type of economical heating element capable of operating under hot and rigorous environments. Specification and Range of Resistance:

Diameter	Length of hot zone	Length of cold zone	Overall length	Range of resistance
8mm	100-300mm	60-200mm	240-700mm	2.1-8.6 ohms
12mm	100-400mm	100-350mm	300-1100mm	0.8-5.8 ohms
14mm	100-500mm	150-350mm	400-1200	0.7-5.6 ohms
16mm	200-600mm	200-350mm	600-1300	0.7-4.4 ohms
18mm	200-800mm	200-400mm	600-1600	0.7-5.8 ohms
20mm	200-800mm	250-600mm	700-2000mm	0.6-6.0 ohms
25mm	200-1200mm	250-700mm	700-2600mm	0.4-5.0 ohms
30mm	300-2000mm	250-800mm	800-3600mm	0.4-4.0 ohms
35mm	400-2000mm	250-800mm	900-3600mm	0.5-3.6 ohms
40mm	500-2700mm	250-800mm	1000-4300mm	0.5-3.4 ohms
45mm	500-3000mm	250-750mm	1000-4500mm	0.3-3.0 ohms
50mm	600-2500mm	300-750mm	1200-4000mm	0.3-2.5 ohms
54mm	600-2500mm	300-750mm	1200-4000mm	0.3-3.0 ohms

For more information, please click Download link, to download following documents:1. SUGGESTIONS FOR SELECTING BROTHER HEATING ELEMENTS2. INSTALLATION OF BROTHER HEATING ELEMENT3. LIFE OF BROTHER HEATING ELEMENT
