Shutter Door Roll Forming Machine
Listing ID#17599
ModelLT-Shutter Door
CategoryOther Construction Machinery
Other Construction Machinery

Shutter Door Roll Forming Machine

Specifications

Origin
Shandong, China
Request Quote
Quick answer

Shutter Door Roll Forming Machine is a Other Construction Machinery product. Key specs — Origin: Shandong, China.

Product Description

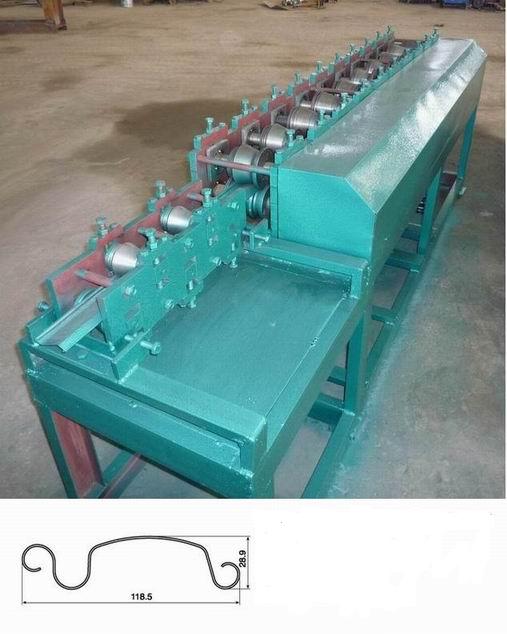

Shutter Door Roll Forming Machine

Technical Specification: 1.Material Width: 125mm max. 2.Material Thickness: 0.4mm-0.8mm. 3.Suitable Raw Materials: Pre-painted coil; galvanized plate . 4.Forming speed: 12m-15m/min 5.Forming stations: 13 6.Material of rollers: Good 45#, rigid chrome coated. 7.Power of main motor: 3kw. 8.Electric Control System: PLC 9.Dimensions: about 3500mm x 800mm x 780mm.

10.Power: 380V 50HZ 3phase （1 phase voltage 220V） 11.Function: forming shutter door We can design and make machine according to customer’s requirement.
