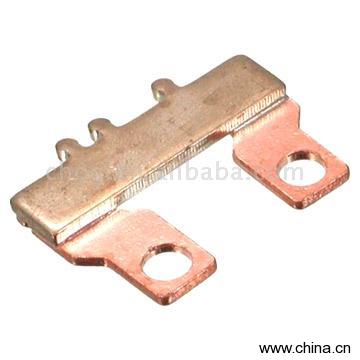

Shunt Resistor of kWh Electricity Meter
Specifications
- Origin
- China (Mainland)
Shunt Resistor of kWh Electricity Meter is a Resistors product. Key specs — Origin: China (Mainland).
Product Description
Model No.:FL Product Origin:China Brand Name:CHOG Price Terms: Payment Terms:T/T Certification:ROHS Description:Work in all kinds of electrical meter as power measurer. Standard and non standard ranges 1. Material: F2 or 6J13 Manganin 2. Resistance: 100~1600 microhm 3. Continuous current: 10~100Amp 4.
Shunt type: the shunt should be mountable type with holes for screw fixing (as per drawing attached) 5. Termination: integrated wires are available. 6. Temperature: independent from temperature variation with low TCR value Characteristics TC over 50PPM/K 7. Power loss: over 50 milli watt 8. Stability: extremely good long term stability. 9.
Aging: 120C for 10 hours.
