Listing ID#10059578
ModelXY05-04
CategoryNuts & Kernels

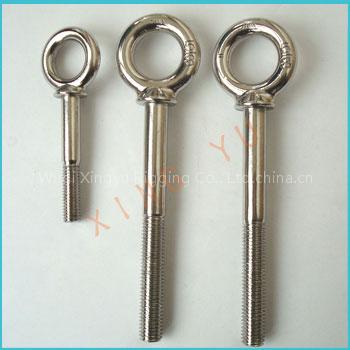

Shoulder NutG-277
Specifications
- Brand
- 星宇
- Origin
- China
- Price Term
- FOB
Quick answer
Shoulder NutG-277 is a Nuts & Kernels product. Key specs — Brand: 星宇; Origin: China; Price Term: FOB.
Product Description
| ART.NO. | Dimension(in.) | W.L.L | |||||
| SIZE | A | B | C | D | Thread | Lbs | |
| XY05-0401 | 1/4"x 2" | 1/4" | 1.50" | 2.00" | 0.51" | 1 1/2 | 500 |
| XY05-0402 | 1/4" x 4" | 1/4" | 2.25" | 4.00" | 0.51" | 2 1/2 | 500 |
| XY05-0403 | 5/16" x 2-1/4" | 5/16" | 1.50" | 2.25" | 0.63" | 1 1/2 | 800 |
| XY05-0404 | 5/16"x 4-1/4" | 5/16" | 2.50" | 4.25" | 0.63" | 2 1/2 | 800 |
| XY05-0405 | 3/8"x 2-1/2" | 3/8" | 1.25" | 2.50" | 0.75" | 1 1/2 | 1200 |
| XY05-0406 | 1/2"x 3-1/4" | 1/2" | 1.50" | 3.25" | 1.02" | 2 1/2 | 2150 |
| XY05-0407 | 1/2"x 6" | 1/2" | 3.00" | 6.00" | 1.02" | 23 | 2150 |
| XY05-0408 | 5/8"x 4" | 5/8" | 2.00" | 4.00" | 1.25" | 2 | 3440 |
| XY05-0409 | 5/8"x 6" | 5/8" | 3.00" | 6.00" | 1.25" | 3 | 3440 |
| XY05-0410 | 3/4"x 6" | 3/4" | 3.00" | 6.00" | 1.52" | 3 | 5140 |
| XY05-0411 | 7/8"x 5" | 7/8" | 2.5 | 5.00" | 2 | 2 1/2 | 7130 |
| XY05-0412 | 1"x 6" | 1" | 4.00" | 6.00" | 1.75" | 3 | 9370 |
High Polished Stainless Steel - AISI 316/304
