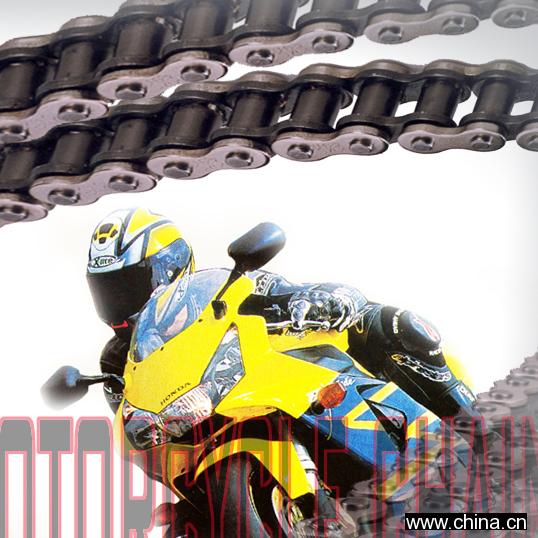

Short Pitch Precision Roller Chains

ISO Chain No:04C-1 to 16A-3 Features:1)Pitch(p/mm): 6.0 - 25.42)Roller Diameter(d-max/mm): 9.525 - 25.43)Width between Inner Plates(b-min/mm):4.77--15.754)Pin Diameter(d-max/mm):3.58--7.925)Pin Length:32.8-91.7--36.1(L-max/mm);33.7-95.1(Lc-max/mm);6)Inner Plate Depth(h2-max/mm):8.7---247)Transverse Pitch(Pt/mm):10.13-29.298)Ultimate Tensile Strength(Q-min/KN):23.7-166.89)Weight per Meter(kg/m):1.05-7.89More information please do not hesitate to contact us.producing area:China
