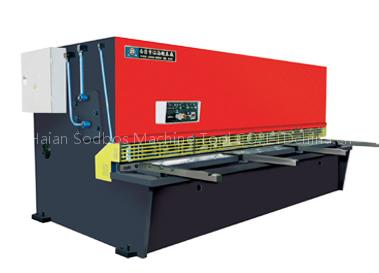

Shearing Machine

Place of Origin Jiangsu, China (Mainland) Brand Name sodbos Model Number QC11Y-16x2500 Condition New Precision Precision Processing Types Metal Automatic Grade Manual Processing shearing Usage shearing Controlling Mode manual Payment & Shipping Terms: Price: Minimum Order Quantity: Negotiable Trial Order Minimum Order Quantity: 1 Set/Sets Trial Order

Port: Shanghai Packaging Details: by 40'HQ container

Delivery Time: within 30 days

Payment Terms: L/C,T/T

Supply Ability: 25 Unit/Units per Month Detailed Product Description shearing machine,cutting machine, guillotine shearing machine,shearer, QC11Y-16x2500 Hydraulic Guillotine Shearing Machine, shearing machine,cutting machine, guillotine shearing machine,shearer, QC11Y-16x2500 Hydraulic Guillotine Shearing Machine, Parameters : Shearing thickness: 16m. Shearing width:2500mm. Plate tensile strength: 450 N/mm² Shearing angle: 0.5º-2.5º Back gauge range:20-800mm Blade length:2600mm(1300mm x 2) Throat depth:80mm Blade material:6CrW2Si. Main motor power: 22w, Oil pump: 40 L/min Stokes: 9-20n/min Number of hold downs: 12 piece Overall

Dimension: 3320 x 2100 x2200mm ( L x W x H)

Weight: about 8.72 tons 380V/50Hz/3 Phase. Character --Whole welding structure --Guillotine beam design --Integration hydraulic system --Motorized back gauge with digital show --Manually blade clearance adjustment --Variable shearing angle to reduce the deformation of the shearing piece --Upper knife carrier with inward structure, its facilitate to feed the material --Time delay relay controlling stroke, can be sheared in section --Counter controlling the number of shearing --Standard front extensive arms --Four cutting edges blade to prolong working life, 6CrW2Si --Foot pedal with emergency stop Main components --Integrated hydraulic system, HUADE valve, REXROTH size --Crescent gear pump. --SIMENS BEIDE main motor --PARKER seals --AUTONICS readout and rotary encoder -- SIEMENS/ SCHNEIDER main electric parts --6CrW2Si blade.
