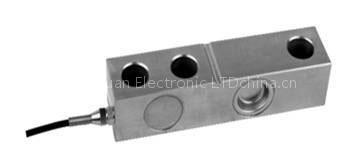

Shear Beam Load Cell

Product Characteristics: GS304 series is single shear beam. One end of the load cells is fixed, another loaded and rocker pressure head transfers force. Easy installation and it is suitable for floor scale, automobile test facilities, hopper scale and other electronic weighing devices.

Technical Parameter: Rated load 0.25/1/1.5/2/2.5/3/5/7.5/10t Sensitivity (2.0±0.1%) mV/V Combined error ±0.03% F.S Creep Error(30min) ±0.02% F.S Zero balance ±1% F.S TCO: ±0.02% F.S/10℃ TC Span: ±0.02% F.S/10℃ Input resistance: 385±5Ω Output resistance: 352±3Ω Insulation resistance: ≥5000MΩ Operating Temp.

Range -30~+70℃ Maximum safe over load: 150%F.S Ultimate over load: 250%F.S Recommend excitation: 10~12V DC Maximum excitation: 15V DC Sealing Class: IP67/IP68 Element material: -A: Alloy Steel, -SS: Stainless Steel Cable: Length=3m(10t) Citation GB/T7551-1997/ OIML R60 Mode of Connection Red(Input+),Black(Input-),Green(Output+),White(Output-)
