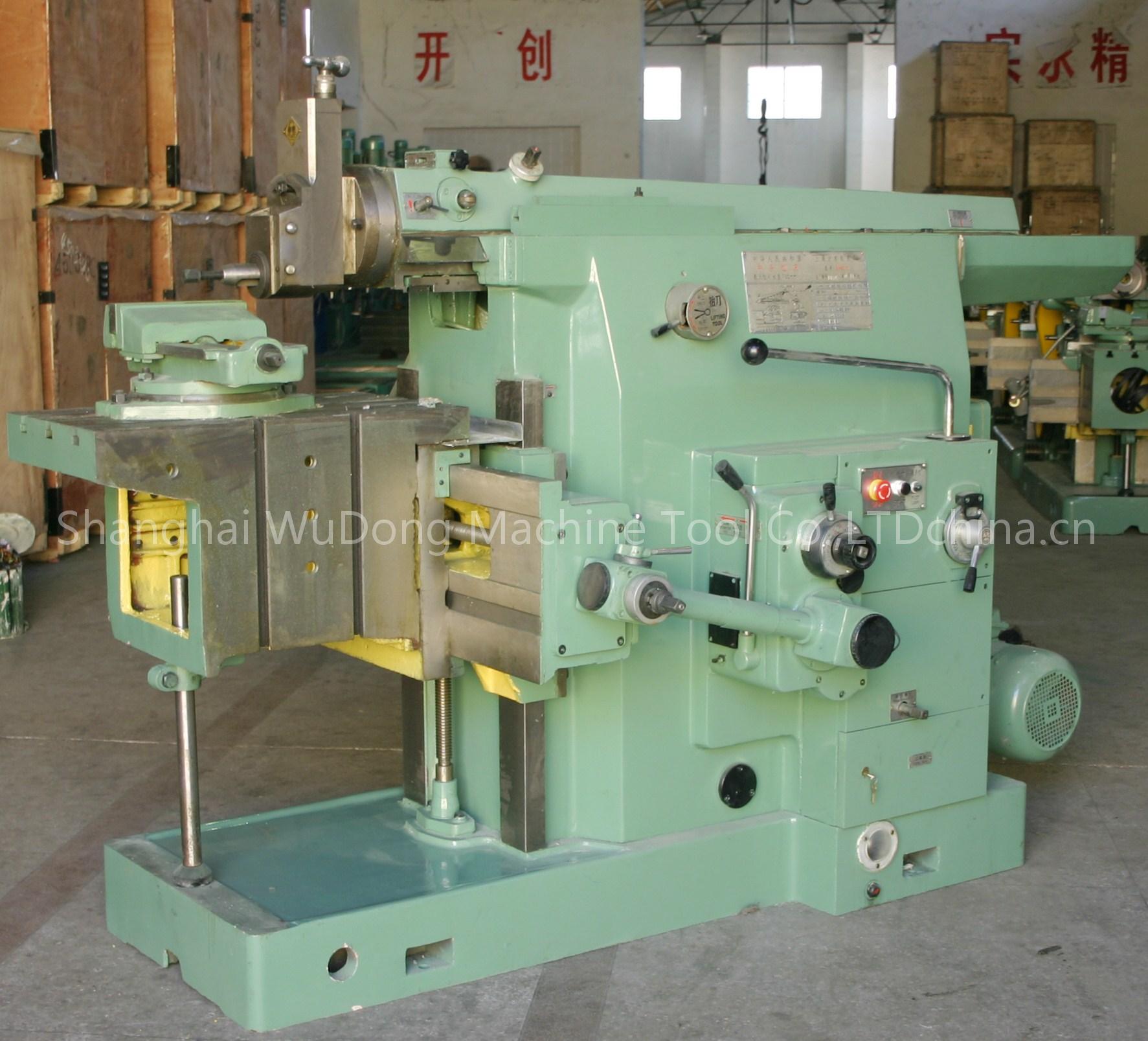

Shaping machine

This machine is suitablle for shaping plane and formed surfaces. High productivity can be obtained for shaping plane surface, T-slots and dovetail slots, etc, on narrow and long workpieces.

The ram mechanism of this machine adopts the guide unit with torsion-spring internally fixed. During the ram movement the cutting tool can be adjusted to an arbitrary position.

The total closed cam-ratchet unit is employed in the feed mechanism and rapid travel mechanism of the table featuring change of feed amounts without stopping the machine during cutting. A disk-type overload safety unit is used.

Owing to the adoption of swivel device with cam-curve groove different speeds can be selected arbitrarily.

Specifications
　Max. shaping length 700 mm 　Max. distance from lower edge of ram to 　table 420 mm 　Max. travel of table 　Horiazontal 630 mm 　Vertical 320 mm 　Rapid travel of table 　Horiazontal 0.75 m/min 　Vertical 0.34 m/min 　Max. vertical travel of tool head 125 mm 　Frequency of ram strokes 11,20,38,52,72, 100 times/min 　Table feed per ram stroke 　Pawl riding over 1 ratchet tooth 　Horiazontal 0.07 mm 　Vertical 0.15 mm 　Pawl riding over 10 ratchet tooth 　Horiazontal 0.68 mm 　Vertical 1.5 mm 　Tool head (down) 0-0.4 mm 　Tool lifting (linear speed) <20 m/min 　Motor 4kW.960 r/min 　Vice measurements (L× W× Max. opening) 240×64×215 mm 　Overall dimensions(L× W× H) 2480×1400×1780 mm 　Packing size(L× W× H) 　Export 2620×1620×1720 mm 　Import 2620×1650×1720 mm 　Net Weight 2700 kg 　Gross Weight 3300 kg
