Listing ID#10110769
ModelWXY-510F
CategoryHydraulic Tools

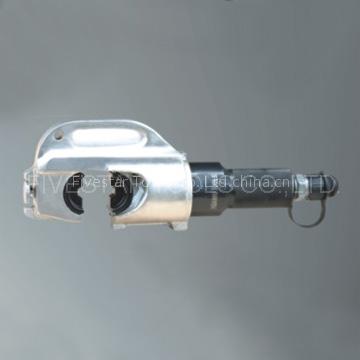

Separable Hydraulic Crimping Tools
Specifications
- Brand
- Fivestar Tools
- Origin
- China (Mainland)
Quick answer
Separable Hydraulic Crimping Tools is a Hydraulic Tools product. Key specs — Brand: Fivestar Tools; Origin: China (Mainland).
Product Description
WXY Series Separable Hydraulic Crimping Tools, Used for indoor and outdoor power transmission and distribution projects.
Designed for high voltage cableconduits(10KV-500KV), wire holders, ferrules and terminals.
Match pump WXB-800, WXB-700, WXB-700C.
Welcome to order special specification tools.
| Model | Max. Pressure (T) | Max. stroke (mm) | Crimp range (mm) | Size of Standard dies (mm) | Crimp pattern | G.W. (Kg) | Volume (cm) |
| WXY-510F | 16 | 38 | 16-400 | 50,70,95,120, 150,185,240, 300,400 | Hexagonal type | 7.2 | 35*19*9 |
| WXY-430F | 16 | 32 | 16-400 | 50,70,95,120, 150,185,240, 300,400 | Hexagonal type | 6.5 | 35*18*11 |
| WXY-35F | 16 | 32 | 16-300 | 50,70,95,120, 150,185,240, 300 | Hexagonal type | 4.8 | 35*19*9 |
