Product Description

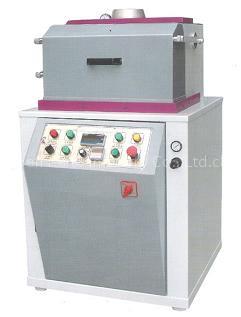

semi-auto vacuum centrifugal casting machine It is used to produce precision casted buckles and accessories for the leather industry and garment industry, imitation jewelry, promotion gifts, medal, and figurines etc from zinc alloy or tin-lead alloy. Features: 1.

Efficient vacuum pump, centrifugal casting cycle shorted, cooling faster, rubber mold working life prolonged Digital speed display. Digital timer for centrifugal time setting. Cover Automatic open / close design, effectively saving time and labor.

Adopt variable frequency driver for speed regulation in range 50-1400 RPM for more processing options Safety protection of the centrifugation area Electronic and pneumatic double emergency brake system Easy operated and maintained. Model VSC12 VSC14 VSC16

Mould diameter max 12” 14” 16”

Mould Thickness 0-120mm

Clamping Pressure 0-0.7Mpa

Centrifugal Power 1.5kw

Speed 50-1400rpm

Vacuum pump Pressure 0.7Mpa

Power 1.2KW
