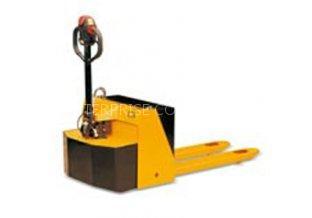

Semi-Electric Pallet Truck SE series
Specifications
- Origin
- China
- Price Term
- FOB
Semi-Electric Pallet Truck SE series is a Other Plastic & Rubber Machinery product. Key specs — Origin: China; Price Term: FOB.
Product Description
Certification:EC declaration
Heavy Duty Design
Brake system:
lntegral electromagnetic disk brake mounted on motor shaft.
Drive wheel:
complete gear train mounted on ball and roller bearing in oil bath housing. High-torque horizontally mounted motor has coppergraphite brushes for excellent fubrication.
Load roller:
Tandem Polyurethane: Ф78×70mm.
Model | SE15S | SE15L | SE20S | SE20L | |||||
Capacity | (kg) | 1500 | 2000 | ||||||
Max. Fork Height | h2 (mm) | 205 (or 195) | |||||||
Min. Fork Height | h (mm) | 85 (or 75) | |||||||
Fork Overall Width | m (mm) | 520 | 680 | 520 | 680 | ||||
Travelling Speed (With Load) | (km/h) | 5 | 5 | 5 | 5 | ||||
Travelling Speed (Without Load) | (km/h) | 6.5 | 6.5 | 6.5 | 6.5 | ||||
Overall Height | H (mm) | 1310 | 1310 | 1310 | 1310 | ||||
Overall Width | W (mm) | 730 | 730 | 730 | 730 | ||||
Dimension | n (mm) | 200 | 360 | 200 | 360 | ||||
h3 (mm) | 620 | 620 | 620 | 620 | |||||
Wa (mm) | 1350 | 1500 | 1350 | 1500 | 1350 | 1500 | 1350 | 1500 | |
Overall length | L (mm) | 1650 | 1800 | 1650 | 1800 | 1650 | 1800 | 1650 | 1800 |
Fork Length | l (mm) | 1000 | 1150 | 1000 | 1150 | 1000 | 1150 | 1000 | 1150 |
Load Centre | C (mm) | ||||||||
