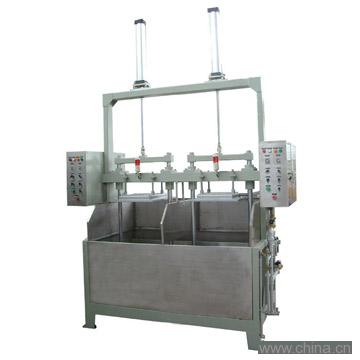

Semi-Auto Reciprocating Forming Machine

Model No.:XW-10765 Product Origin:China Brand Name:Datian Price Terms:FOB, CIF Payment Terms:30% T/T, 70% L/C Certification: Description:Forming machine is one of the principle equipment in the pulp molding process.

The wet products are produced on the specially-made metal mould through vacuum effect to the stock adjusted to certain consistency (normally 0.6~1.2%).Specifications:1) Model: XW-107652) Size of molding platen: 1,070 x 650mm3) Tank material: stainless steel4) Molding circle: 15~60s5) Stock consistency: 0.6~1.2%6) Control style: Mitsubishi program controller (PLC)7) Vacuum degree: -0.05 ~ -0.09MPa8) Compressed air pressure: 0.5~0.7MPa9) Overall size: 1,530 x 1,190 x 3,335mm10) Weight: 900kg
