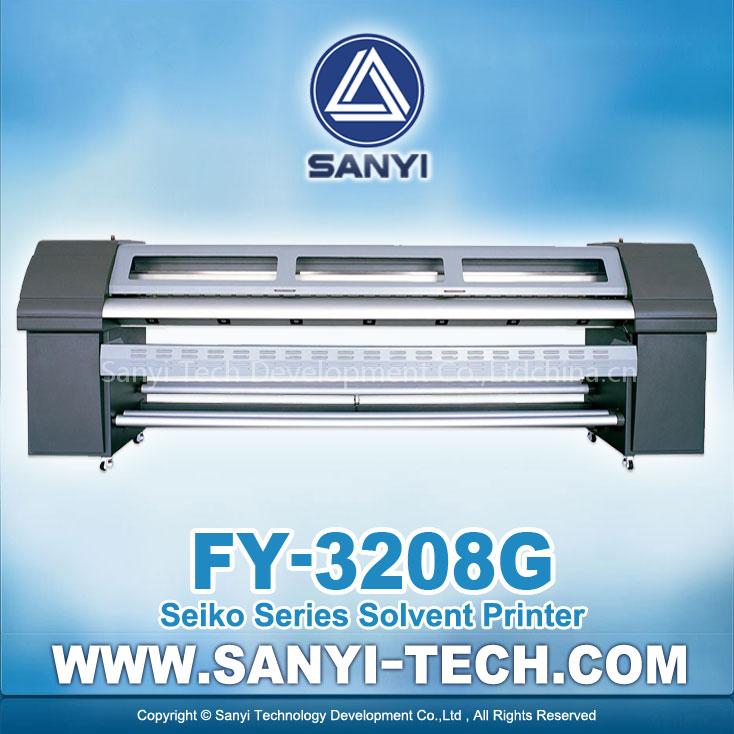

Seiko solvent printer FY-3208G

Specification :

Product Model: FY-3208G Seiko solvent printer

Printhead: SPT510-35PL printhead

Number of Printhead :8 Heads solvent printer

Maximum Print Width: 3200mm

Output (m²/h)Print mode

Standard Output (m²/h)

360x3601 pass101

240x7202 pass76

240x10803 pass51

360x10803 pass34

720x7204 pass26

InkType : Solvent Ink/Mild Solvent Ink

Color :4 Colors( C , M , Y , K )

Capacity :1L or 5L per Main Tank of Each Color

nk Supply System :Low Ink Detector, Auto or Manual Ink Supply System

Media

Width :3300mm

Type :Vinyl,Flex,Polyester,Back-lit Film,WindowFilm,etc

Auto Media Feeding System: Equipped ( Max. Media Weight 80kg )

Auto Cleaning System:Individual Positive Pressure Cleaning

Anti-clogged Flash Function & Capping System

Pre-heating & Drying System:Equipped

Clamp: Equipped

Print Interface:Optical Fiber

Printhead Height:2 to 6 mm Above Media Adjustable

RIP Software:Maintop , UltraPrint , PhotoPrint , Topaz , Wasatch , Caldera

Input Power:AC 220V ,50Hz/60Hz

Machine Dimension: L4600 x W820 x H1320 mmNet Weight : 482Kg

Package Dimension:L4650 x W970 x H1600 mmGross Weight : 770Kg
