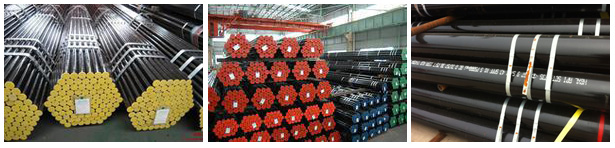

Seamless Line Pipe - Line Pipe

Brief Description:
Seamless Line Pipe, Outside Diameter: 5/8 to 36 Inches, Wall Thickness: 1.24mm-45mm Type of End-Finish: BBE or PE
Product Details:
Operative Standard & Grade:
API 5L PSL1, PSL2: Gr B, X42, X52, X56, X60, X65, X70
Addition: NACE MR-0175, ISO 15156 1, 2, 3
ASTM/ASME:
A53: GRADE A & B
A106: GRADE A, B & C
A178: GRADE A, C & D
A179/A192/A214/A513: Low Carbon Steel
A210: GRADE A-1 & C
A213: T2, T5, T11, T22, T91
A333: GRADE 1 & 6
A334: GRADE P5, P11, P22, P91
A500: GRADE A, B, C & D
A519: 1008,1010,1020,1026,1035,1045,1050,1518,1524,4118,4130,4135,4140,4142,5115,5120,5140,52100
AMS:
AMS-T-6736, 4130
SAE:
J524/J525 Low Carbon Steel
DIN:
DIN2391: ST30, ST35, ST45, ST52
DIN2393: RST34-2, RST37-2, ST44, ST52-3
DIN2394: RST34-2, RST37-2, ST44-2, ST52-3
DIN17175: ST35.8, ST45.8, 17Mn4, 19Mn5, 15Mo3, 13CrMo44, 13CrMo910
DIN2448,1629,1630: ST37, ST37.4, ST44, ST44.4, ST52, ST52.4
BS:
BS3059: 320, 360, 440, 243, 620-460, 622-490
BS6323: CFS3, CF3A, CFS5, CFS6, CFS7, CFS8, CFS9, CFS10, CFS11
EN:
EN10305-1,2,4: E215, E235, E255, E275, 26Mn5, C35E, C45E, 26Mo2, 25McrMo4, 42CrMo4, E155, E195, E235, E275, E355
EN10216-1: TC1, P195TR1, P195TR2, P235TR1, P235TR2, P265TR1, P265TR2
EN10216-2: 195GH, P235GH, P265GH, 16MO3, 10CrMo5-5, 13CrMo4-5, 10CrMo9-10
EN10216-3: P275NL1,NL2, P355NL1,NL2
EN10216-4: P215NL1, P255QL, P265NL
Size Range: OD 5/8 to 36 Inches, WT 1.24mm-45mm
Type of End-Finish: BBE (Black Beveled Ends) or PE (Plain Ends)
Coating: Black Paint or Varnish, Passivation and Oiled, Galvanized
Packing: Plastic Plugs in both ends, Bundles of max. 3,000kg with several Steel Strips, Two Tags on each bundle, Wrapped in Waterproof Paper and Sackcloth with several Steel Strips
Mill Test Certificate: EN 10204/3.1B
USAGE: Oil & Gas Transportation, Heat-Exchanger & Boiler, Low-Temperature Service, Ship-Building, etc.
