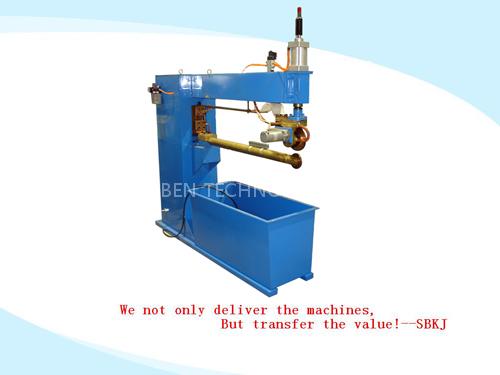

Seam Welder

Features

1. Cross sea longitudinal seam and horizontal and vertical seam. 2. The speed of welding is quick and the efficiency of welding is high. 3. According to the clients' demand, set the function of continuous weld and pulse weld. 4. Equipped with a high reliability control box
5. The welding speed can be regulated continuously.
6. Suitable for the site for welding airproof vesse
Main Technical Date:

Item Type	FN-35	FN-55	FN-75	FN-100
Rated input capacity	35KVA	55KVA	75KVA	100KVA
Rated input voltage	1-38V/50HZ	1-380V/50HZ	1-380V/50HZ	3-380V/50HZ
Rated load cycle	50%	50%	50%	50%
Max.input capacity	45KVA	88KVA	110KVA	170KVA
Max.short circuit current	6200A	11000A	16000A	26000A
Max.pressure of electrode	400KGF	600KGF	1000KGF	1000KGF
The flow of cooling water	6L/min	6L/min	8L/min	8L/min
Arm length	600mm	600mm	600mm	600mm
Electrode journey	80mm	80mm	80mm	80mm
Speed of welding	0.5-3m	0.5-3m	0.5-3m	0.5-3m
Weight	220kg	280kg	350kg	400kg
