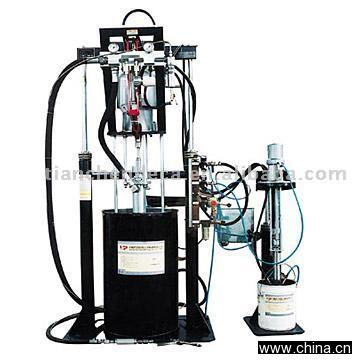

Sealant - Spreading Machine (ST02)

Model No.:ST02 Product Origin:China Brand Name:DECA Price Terms: Payment Terms:T/T, Irrevocable L/C at sight Certification:ISO9001 Description:Main functions : 1) This equipment was designed by jointing the advanced technology from abroad andinside of China.

It is an equipment used to spread two - component polysulphideglue or two - component silicone structure glue over the sealing edges of aluminumgroove type hollow glass or curtain wall glass that are under the manufacture2) A and B component glue pump, gelatinize gun and safety valve are all from GRACOCompany of America.

So it can ensure the credulity working3) The special and convenient mixed device can ensure the high quality of the mixture4) The equipment is featured by uniform mixture and continuous stability of extrudedglue, good spreading effect and high production efficiency Main technical data: 1) Mixing ratio: 6: 1 - 14: 12) Max. amount of extruded glue: 4L/min3) A pump: 55 gallons (200L)4) B pump: 5 gallons (20L)5) Glue air - pressure ratio: 50: 16) Max. air consumption: 0.8m³/min7) Pressure of pneumatic system: 0.5 - 0.8MPa8) Figure dimensions: 1,100 x 950 x 1,630mm9) Total weight: 450kg
