Screen of shale shaker is a Mining Machinery product. Key specs — Origin: China.
Product Description
Type | Meshes | Dimension | Suitable type of shale shaker |
GS/P | 16-325 | 697×1050mm | DERRICK/FLC 500 series |
GS/B | 16-325 | 697×1050mm | DERRICK/FLC 500 series |
GS/P | 16-325 | 697×1053mm | DERRICK/FLC 2000 series |
GS/B | 16-325 | 697×1053mm | DERRICK/FLC 2000 series |
GS/P | 16-325 | 697×846mm | DERRICK/FLC 313M |
GS/P | 16-325 | 915×1150mm | DERRICK/FLC 313M |
GS/P | 16-325 | 720×1220mm | KEMTRON KTL-48B series |

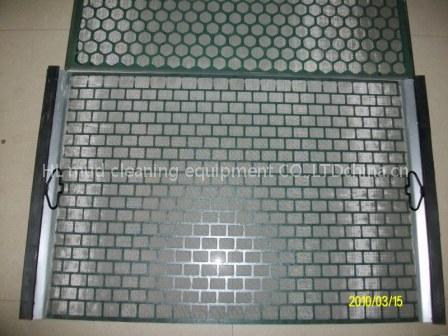

GS/P Flat-plate is the most common used screen of , often made of 2-3-layers’ stainless steel screen cloth sticky to metal lining with openings, and could be applied to drilling works under different condition.
Flame Screen commonly used screen of shale shaker, made of steel frame support 2-3-layers’ stainless steel screen cloth sticky to the frame, The frame is welded by high strength quadrate steel box section or flat bar and is attached with multiple high strength support rods. The screen can be connected with the frame through metal lining or sticky to the frame directly.
Type | Meshes | Dimension | Suitable type of shale shaker |
KS | 16-325 | 585×1165mm | SWACO MONGOOSE |
KS | 16-325 | 636×1253mm | BRANDT BL-50/ Cobra |
KS | 16-325 | 913×650mm | BRANDT-VSM300 |
KS | 16-325 | 720×1220mm | KEMTRON KTL-48B series |
