Listing ID#10222810
ModelSGB
CategoryMachinery
Quick answer
Scraper Conveyor is a Machinery product. Key specs — Brand: Tonghua Mining Equipment; Origin: China.
Product Description

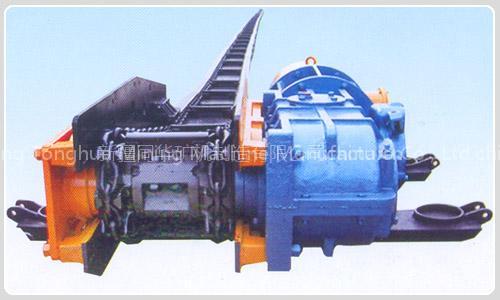

Product Name: Scraper Conveyor
Fetures of Scraper Conveyor
1. be used in coal transportation
2.production according to MT/T10593
technical parameters of Scraper Conveyor
| length | 　 | 100 | gear ratio of reducer | 　 | 0.00097875 |
| quantity delivered(t/h) | 　 | 150 | flightlink | model | round link chain |
| chain speed(m/s) | 　 | 0.86 | 　 | specification | 18×64 |
| motor | model | YBS—40 | 　 | breaking force(KN) | ≥343 |
| 　 | power(KW) | 40 | 　 | Chain number | 2 |
| 　 | voltage(V) | 660/380 | 　 | interchain spacing(mm) | 500 |
| 　 | rotate speed(r/min) | 1470 | 　 | Scraper spacing(mm) | 1024 |
| fluid coupling | model | YOXD400 | center cut | length(mm) | 1500 |
| 　 | Rated Power(KW) | 40 | 　 | Width(mm) | 620 |
| operatingfluid | 　 | 22#steam turbine oil | 　 | Height(mm) | 180 |
