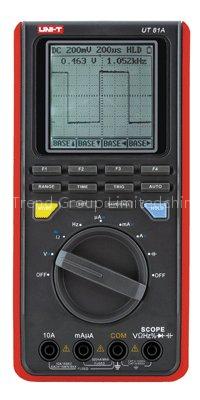

Name: Scope Digital Multimeters
Brand: Uni-Trend

SPECIFICATIONS

Basic Functions of Scope Digital Multimeters	Range	Best Accuracy
DC Voltage	400mV/ 4V/40V/400V / 1000V	(0.8%+8)
AC Voltage	4V/40V/400V / 750V	(1%+15)
DC Current	400µA /4000µA / 40mA/400mA / 4A/10A	(1%+8)
AC Current	400µA /4000µA / 40mA/400mA / 4A/10A	(1.5%+8)
Resistance	400/ 4k/40k/400k/4M/ 40M	(1%+5)
Capacitance	40nF/400nF/4µF/40µF/100µF	(3%+8)
Frequency	10Hz~10MHz	(0.1%+3)
Vertical Accuracy		(5%+1)
Input Sensitivity	20mV/div-500V/div (1-2-5)
Horizontal Accuracy		(0.01%+1)
Timebase Range	100ns/div-5s/div (1-2-5)
Bandwidth		2MHz
Display Resolution	160x160
Real-Time Sample Rate		20MS/s
Duty Cycle	0.1%~99.9%
Special Functions of Scope Digital Multimeters
Diode
Continuity Buzzer
Display	160x160 Monochrome
Trigger Types	Free Run / Normal / Single Shot
Memory	10 screens and setups
Contrast and Bright Setup
Input Impedance For DCVoltage Measurement	Around 10M Ω
Sleep Mode
Low Battery Display
Display Backlight
USB
Max.Display	3999

GENERAL CHARACTERISTICS

Power	1.5V Battery (R6) x 4
LCD Size	60 x 60 mm
Product Color	Red and Grey
Product Net Weight	498g
Product Size	200 x100 x 48 mm
Standard Accessories	Test Lead, Battery, English Manual, Alligator Clip, USB Interface Cable, Software, Carrying Bag (UT81B only), Power Adaptor (UT81B only)
Optional Accessories*	Scope Probe, BNC Probe, Power Adaptor (UT81A only)
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	20 pcs
Standard Carton Measurement	490×385×510mm (0.096 CBM Per Standard Carton)
Standard Carton Gross Weight	24kg

*Available at Extra Cost
Specifications and other information of Scope Digital Multimeters are subject to change without further notice.
