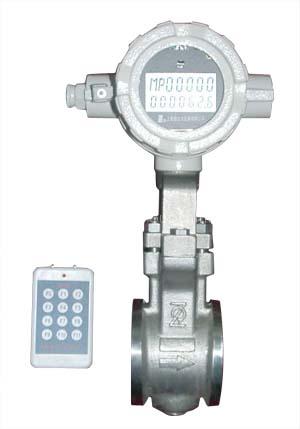

Scene display

Functions

the fluid of Instantaneous flow value and Accumulated flow value display at the same time
Output pulse signal, or standard current signal.
With data protection when the power is loss, remote parameter settings, andliquid crystal display backlight function.
the performance of the scene display is stable and reliable, high accuracy, use, operation and maintenance of simple, convenient and widely used.

Main Specifications
Total length: Decimal 7
Instantaneous length of the volume of shows: 5 decimal
Shows the total error: ± 1 display unit
Showed a transient error: ± 0.1% ± 1 display unit
Output signal: Analog 4 ~ 20mA DC
(Or 1 ~ 5V, the user special order)
Pulse low level: 0 ~ 2V
High: the supply voltage V DD-2V;
(3KΩ Load resistor)
Duty cycle: 50%
Pulse equivalent setting range: l ~ 9999
Time of data protection when the power is loss 5 years

Working conditions
Ambient temperature: -10 ~ +60
Relative Humidity: ≤ 85%
Power supply
Voltage: 24V DC ± 10%
Power Consumption: 2.5W
Weight: about 2.5kg
Explosion-proof grade: d BT4
